Description

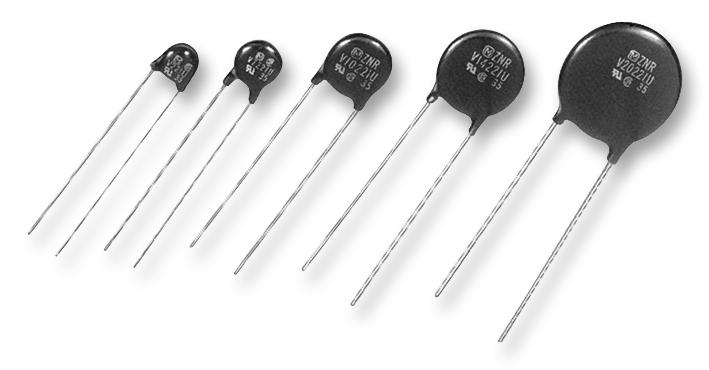

PANASONIC - ERZV20D330 - TVS Varistor, 20 V, 26 V, 65 V, Disc 20mm, Zinc Oxide Non-Linear Resistor (ZNR)
- Voltage Rating VAC: 20V
- Voltage Rating V DC: 26V
- Product Range: -
- Clamping Voltage Vc Max: 65V
- Varistor Case Style: Disc 20mm
- Varistor Type: High Surge Current
- Peak Surge Current @ 8/20µs: 3kA
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 24J
- Automotive Qualification Standard: -
- SVHC: No SVHC (12-Jan-2017)
- Clamping Voltage: 65V
- Operating Temperature Range: -40°C to +85°C
- Suppressor Type: Absorber
- Surge Current: 3kA
- Varistor Voltage @ 1mA: 33V
