Description

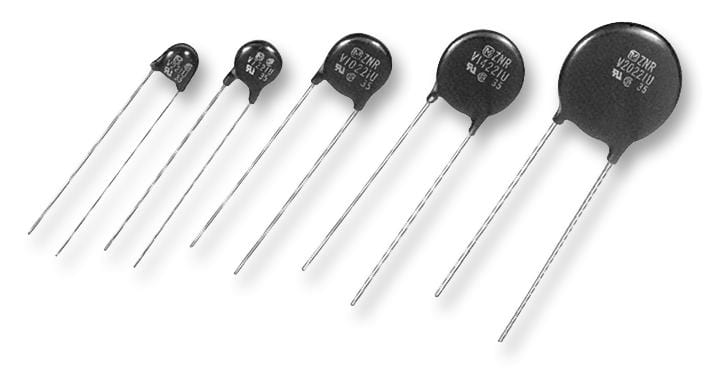

PANASONIC - ERZV05D241 - TVS Varistor, 150 V, 200 V, V, 415 V, Disc 5mm, Zinc Oxide Non-Linear Resistor (ZNR)
- Voltage Rating VAC: 150V
- Voltage Rating V DC: 200V
- Product Range: V Series
- Clamping Voltage Vc Max: 415V
- Varistor Case Style: Disc 5mm
- Varistor Type: High Surge Current
- Peak Surge Current @ 8/20µs: 800A
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 10.5J
- Automotive Qualification Standard: -
- SVHC: No SVHC (12-Jan-2017)
- Clamping Voltage: 415V
- Operating Temperature Range: -40°C to +85°C
- Suppressor Type: Absorber
- Surge Current: 800A
- Varistor Voltage: 240V
