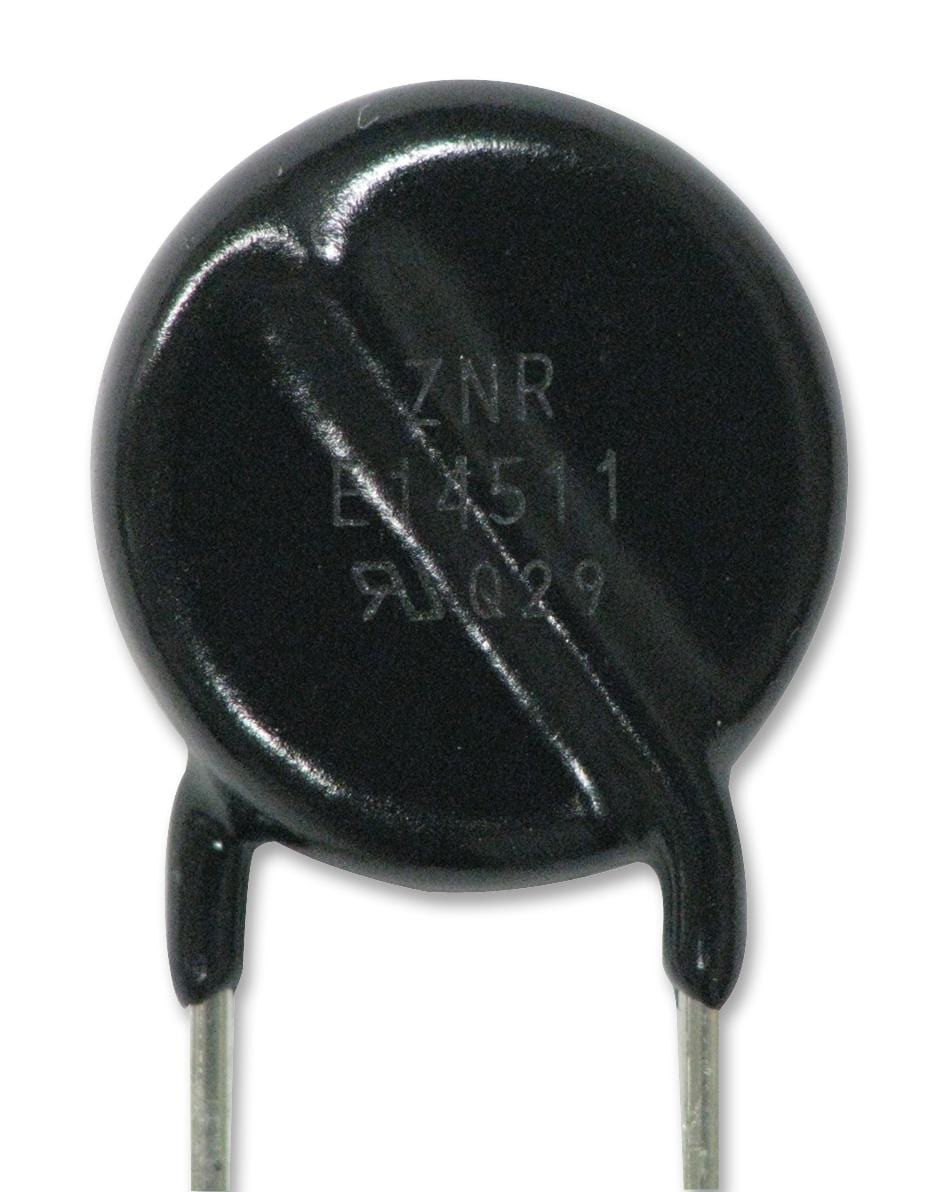

PANASONIC - ERZE11A112 - TVS Varistor, Surge Absorber, 680 V, 895 V, ZNR E11, 1.815 kV, Disc 14mm
- Voltage Rating VAC: 680V
- Voltage Rating V DC: 895V
- Product Range: ZNR E11 Series
- Clamping Voltage Vc Max: 1.815kV
- Varistor Case Style: Disc 14mm
- Varistor Type: Zinc Oxide Non-Linear Resistor (ZNR)
- Peak Surge Current @ 8/20µs: 5kA
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 310J
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Operating Temperature Range: -40°C to +85°C
