Description

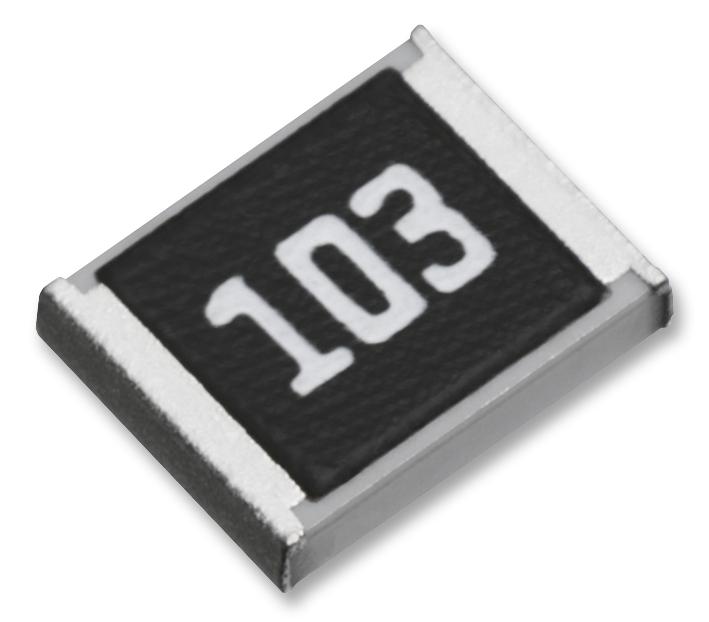

PANASONIC - ERJT08J184V - SMD Chip Resistor, 180 kohm, ± 5%, 333.3 mW, 1206 [3216 Metric], Thick Film, Pulse Withstanding
- Resistor Case Style: 1206 [3216 Metric]
- Resistance: 180kohm
- Product Range: -
- Voltage Rating: 200V
- Resistor Element Material: Thick Film
- Power Rating: 330mW
- Resistance Tolerance: ± 5%
- Temperature Coefficient: ± 200ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (07-Jul-2017)
- No. of Pins: 2Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +155°C
- Resistor Mounting: Surface Mount Device
