Description

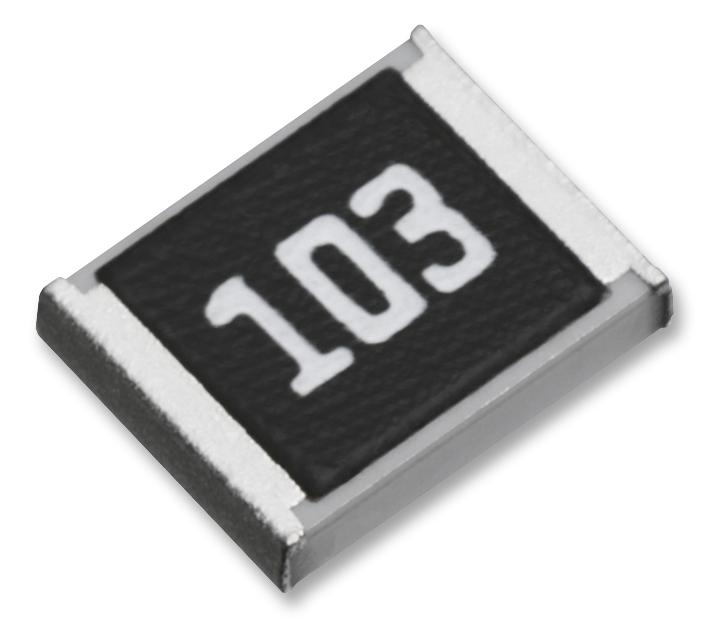

PANASONIC - ERJP08F24R0V - SMD Chip Resistor, 24 ohm, ± 1%, 660 mW, 1206 [3216 Metric], Thick Film, High Power, Anti-Surge
- Resistor Case Style: 1206 [3216 Metric]
- Resistance: 24ohm
- Product Range: -
- Voltage Rating: 500V
- Resistor Element Material: Thick Film
- Power Rating: 660mW
- Resistance Tolerance: ± 1%
- Temperature Coefficient: ± 100ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (07-Jul-2017)
- No. of Pins: 2Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +155°C
- Overload Voltage: 1000V
- Resistor Mounting: Surface Mount Device
