Description

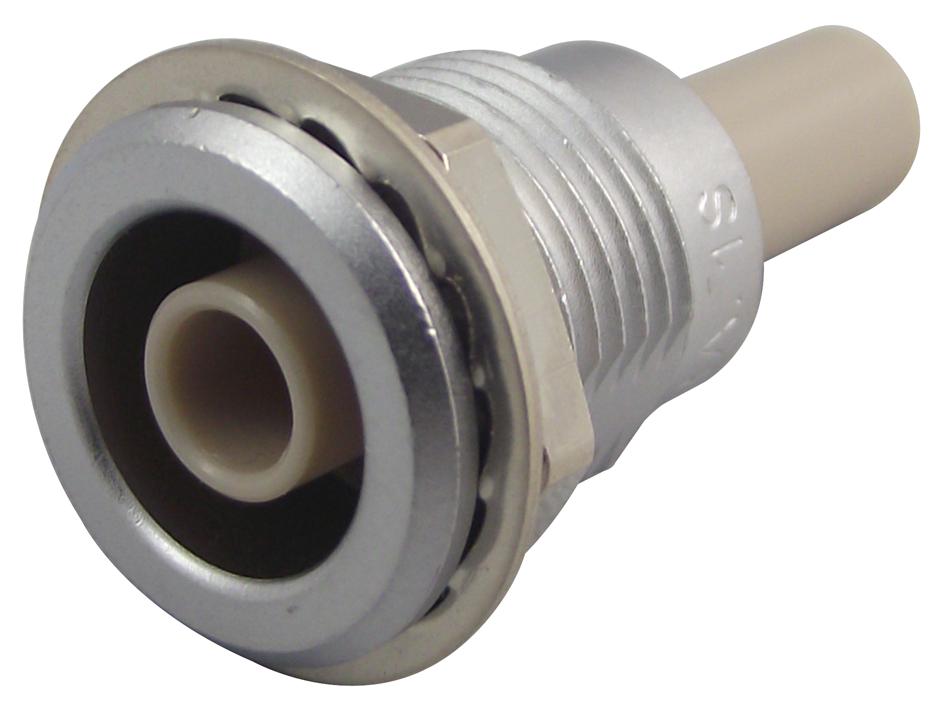

LEMO - ERA.1S.405.CLL - Circular Connector, 1S Series, Panel Mount Receptacle, 1 Contacts, Solder Socket, Push-Pull
- Product Range: 1S Series
 - Circular Connector Shell Style: Panel Mount Receptacle
 - No. of Contacts: 1Contacts
 - Circular Contact Type: Solder Socket
 - Coupling Style: Push-Pull
 - Connector Body Material: Brass Body
 - Connector Body Plating: Chrome
 - Contact Material: Bronze
 - Contact Plating: Gold
 - SVHC: No SVHC (07-Jul-2017)
 - Connector Mounting: Panel Mount
 - Connector Type: Circular Industrial
 - Contact Gender: Socket
 - Contact Plating: Gold Plated Contacts
 - Contact Termination: Solder
 - Contact Termination Type: Solder
 - Current Rating: 8A
 - Gender: Receptacle
 - IP / NEMA Rating: IP50
 - Power Contact Diameter: 1.3mm
 - Voltage Rating V DC: 7000V
 - Voltage Rating VAC: 5000V
 - Wire Size AWG Max: 18AWG
 - Working Voltage: 5kV
