Description

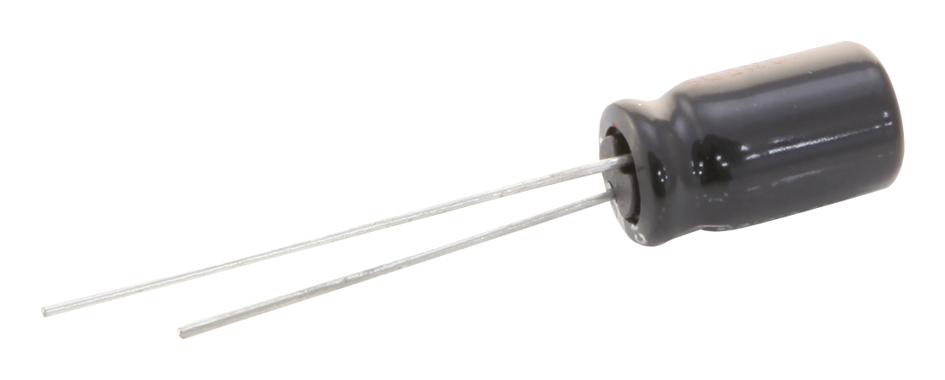

PANASONIC - EEUHD1C331 - Electrolytic Capacitor, 330 µF, 16 V, ± 20%, Radial Leaded, 1000 hours @ 105°C, Polar
- Capacitance: 330µF
- Voltage Rating: 16V
- Product Range: HD Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Radial Leaded
- Diameter: 8mm
- Lead Spacing: 3.5mm
- Height: 11.5mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 105°C
- Lifetime @ Temperature: 1000 hours @ 105°C
- ESR: -
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- AC Ripple Current @ 120Hz: 260mA
- Capacitance Tolerance ±: ± 20%
- Lead Diameter: 0.6mm
- Operating Temperature Range: -55°C to +105°C
