Description

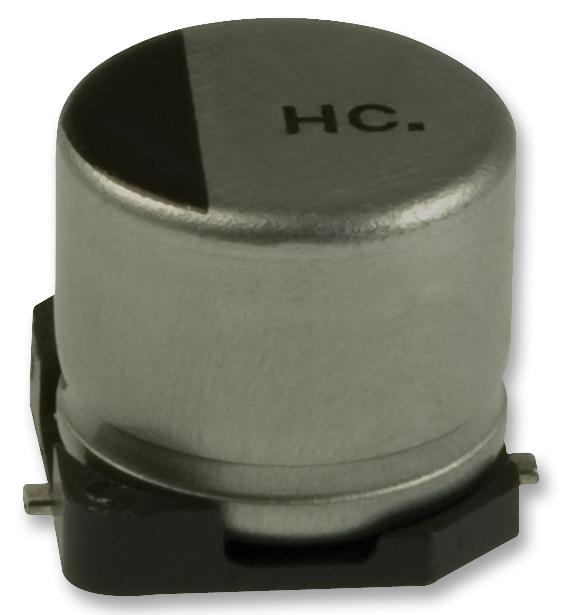

PANASONIC - EEEHC1C101XP - SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 100 µF, 16 V, 3000 hours @ 105°C, Polar
- AE Capacitor Case: Radial Can - SMD
- Capacitance: 100µF
- Voltage Rating: 16V
- ESR: -
- Product Range: HC Series
- Lifetime @ Temperature: 3000 hours @ 105°C
- Operating Temperature Min: -40°C
- Operating Temperature Max: 105°C
- Ripple Current AC: 81mA
- Diameter: 6.3mm
- Height: 7.7mm
- Automotive Qualification Standard: AEC-Q200
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
