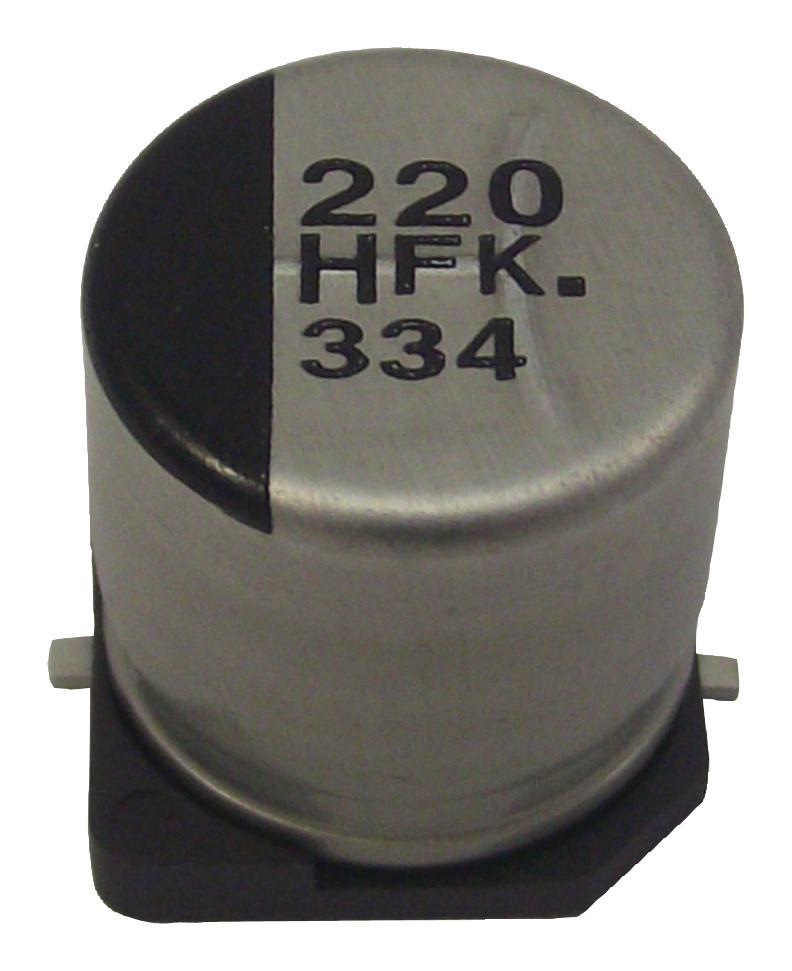

EEEFK1C221P Cap, 220µF, 16V, Radial, SMD Panasonic

PANASONICSKU: EEEFK1C221P Order code: 9695680

Price:
Sale price€1,05

Tax included Shipping calculated at checkout

Stock:
In stock (4879 units), ready to be shipped

Documenten en downloads

Description

PANASONIC - EEEFK1C221P - SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 220 µF, 16 V, 2000 hours @ 105°C, Polar

  • AE Capacitor Case: Radial Can - SMD
  • Capacitance: 220µF
  • Voltage Rating: 16V
  • ESR: -
  • Product Range: FK Series
  • Lifetime @ Temperature: 2000 hours @ 105°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 105°C
  • Ripple Current AC: 300mA
  • Diameter: 8mm
  • Height: 6.2mm
  • Automotive Qualification Standard: AEC-Q200
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Capacitance Tolerance: ± 20%
  • Capacitance Tolerance ±: ± 20%
  • Capacitor Case Style: Radial Can - SMD
  • External Length / Height: 6.2mm
  • Impedance: 0.26ohm
  • Operating Temperature Range: -55°C to +105°C
  • Operating life Time: 2000h
  • Power Factor: 0.16
  • Power Factor Frequency: 120Hz
  • Ripple Current Frequency: 100kHz
  • Ripple Current Temperature: 105°C
  • Tolerance +: 20%
  • Tolerance -: 20%
  • Voltage Rating V DC: 16V
