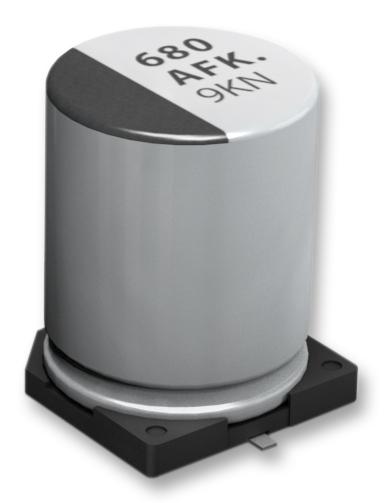

EEEFK1A102P Cap, 1000µF, 10V, Radial, SMD Panasonic

PANASONICSKU: EEEFK1A102P Order code: 9695630

Price:
Sale price€1,96

Tax included Shipping calculated at checkout

Stock:
In stock (403 units), ready to be shipped

Documents et téléchargements

Description

PANASONIC - EEEFK1A102P - SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 1000 µF, 10 V, 2000 hours @ 105°C, Polar

  • AE Capacitor Case: Radial Can - SMD
  • Capacitance: 1000µF
  • Voltage Rating: 10V
  • ESR: -
  • Product Range: FK Series
  • Lifetime @ Temperature: 2000 hours @ 105°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 105°C
  • Ripple Current AC: 850mA
  • Diameter: 10mm
  • Height: 10.2mm
  • Automotive Qualification Standard: AEC-Q200
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Capacitance Tolerance: ± 20%
  • Capacitance Tolerance ±: ± 20%
  • Capacitor Case Style: Radial Can - SMD
  • External Length / Height: 10.2mm
  • Impedance: 0.08ohm
  • Operating Temperature Range: -55°C to +105°C
  • Operating life Time: 2000h
  • Power Factor: 0.19
  • Power Factor Frequency: 120Hz
  • Ripple Current Frequency: 100kHz
  • Ripple Current Temperature: 105°C
  • Tolerance +: 20%
  • Tolerance -: 20%
  • Voltage Rating V DC: 10V
