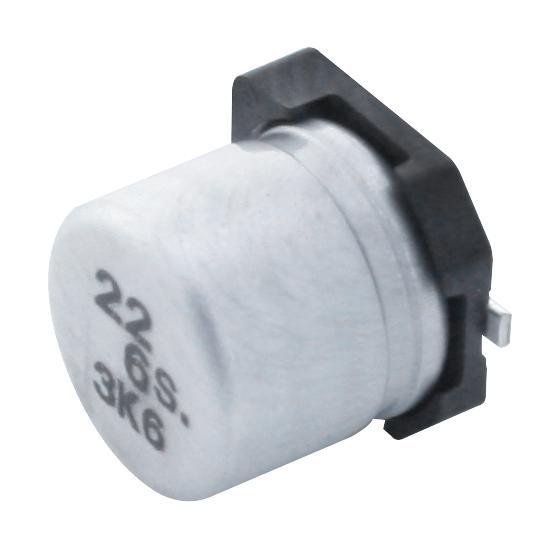

PANASONIC - EEE1CA220NP - SMD Aluminium Electrolytic Capacitor, Bi-Polar, Radial Can - SMD, 22 µF, 16 V, 2000 hours @ 85°C
- AE Capacitor Case: Radial Can - SMD
- Capacitance: 22µF
- Voltage Rating: 16V
- ESR: -
- Product Range: S Series
- Lifetime @ Temperature: 2000 hours @ 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Ripple Current AC: 39mA
- Diameter: 22mm
- Height: 6.3mm
- Automotive Qualification Standard: AEC-Q200
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance: ± 20%
- Capacitance Tolerance ±: ± 20%
- Capacitor Case Style: Radial Can - SMD
