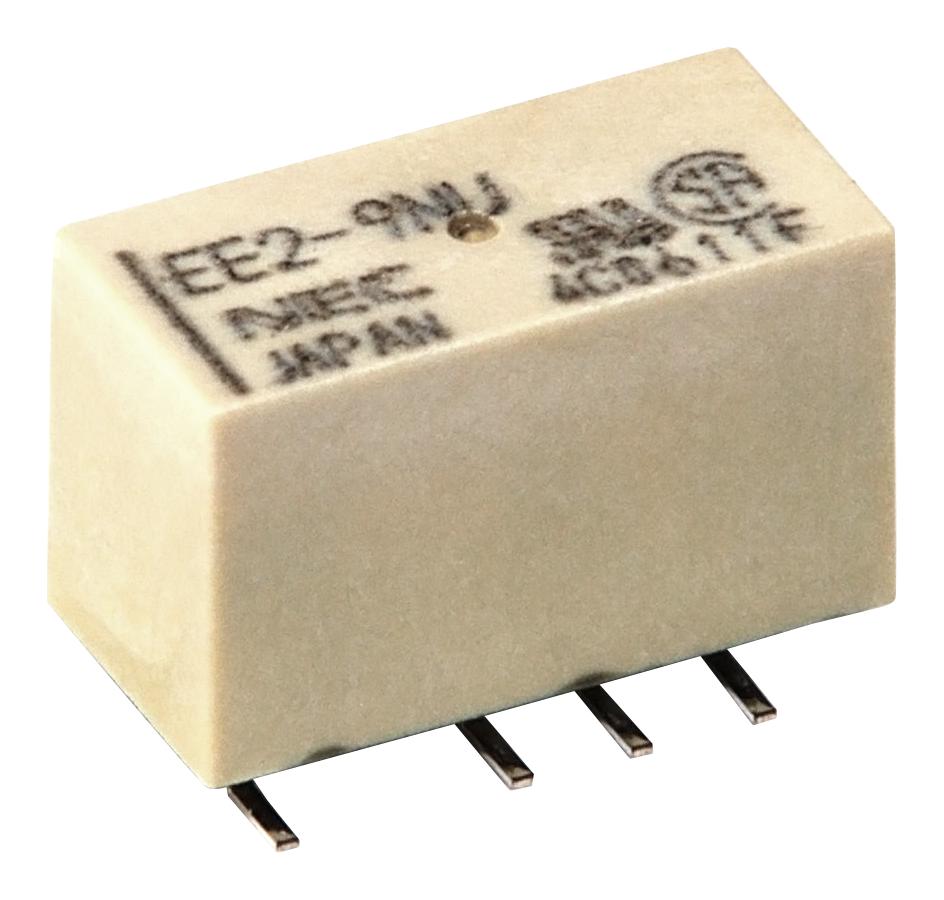

KEMET - EE2-5TNU-L - Signal Relay, 5 VDC, DPDT, 2 A, EC2 & EE2 Series, Surface Mount, Latching Dual Coil
- Coil Voltage: 5VDC
- Contact Configuration: DPDT
- Contact Current: 2A
- Product Range: EC2 & EE2 Series
- Relay Mounting: SMD
- Coil Type: Latching Dual Coil
- Relay Terminals: Solder
- Contact Voltage VAC: 250V
- Contact Voltage VDC: 220V
- Contact Material: Silver Alloy
- Coil Resistance: 178ohm
- SVHC: No SVHC (15-Jan-2018)
- Coil Power Continuous: 140mW
- Coil Voltage VDC Nom: 5V
- Contact Current Max: 2A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 220V
- External Depth: 15mm
- External Height: 10mm
- External Width: 7.5mm
