Description

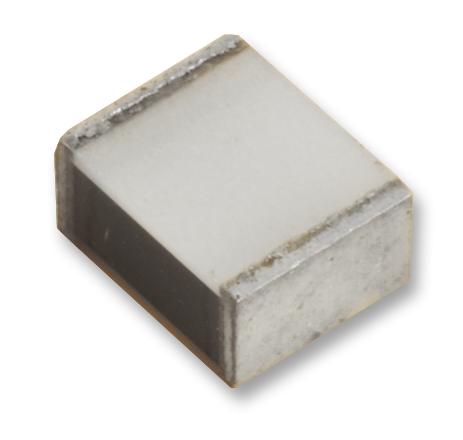

PANASONIC - ECWU1222JX5 - General Purpose Film Capacitor, Metallized PEN Stacked, 1206 [3216 Metric], 2200 pF, ± 5%, 40 V
- Capacitance: 2200pF
- Voltage Rating: 100V
- Capacitor Dielectric Type: PEN (Polyethylene Naphthalate)
- Capacitance Tolerance: ± 5%
- Product Range: ECWU(X) Series
- Capacitor Case Style: 1206 [3216 Metric]
- Capacitor Terminals: SMD
- Lead Spacing: -
- Operating Temperature Min: -55°C
- Operating Temperature Max: 105°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 5%
- External Depth: 3.2mm
- External Length / Height: 1.1mm
- External Width: 1.6mm
- Operating Temperature Range: -55°C to +105°C
- Voltage Rating V DC: 100V
