Description

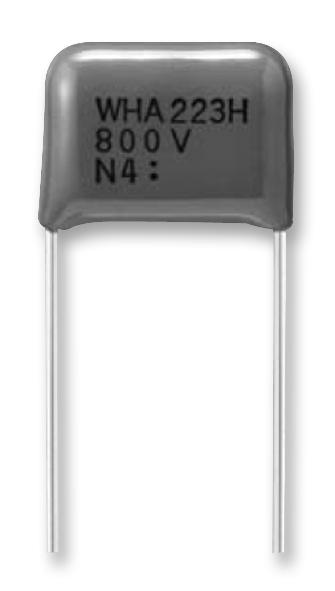

PANASONIC - ECWH8103HA - General Purpose Film Capacitor, Metallized PP, Radial Box - 2 Pin, 0.01 µF, ± 3%, 283 V, 800 V
- Capacitance: 10000pF
- Voltage Rating: 800V
- Capacitor Dielectric Type: PP (Polypropylene)
- Capacitance Tolerance: ± 3%
- Product Range: ECWH(A) Series
- Capacitor Case Style: -
- Capacitor Terminals: Radial Leaded
- Lead Spacing: 12.5mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 105°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 3%
- Capacitor Mounting: Through Hole
- External Depth: 5.4mm
- External Length / Height: 14.8mm
- External Width: 15.4mm
- Height: 14.8mm
- Lead Diameter: 0.6mm
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +105°C
- Voltage Rating V DC: 800V
