Description

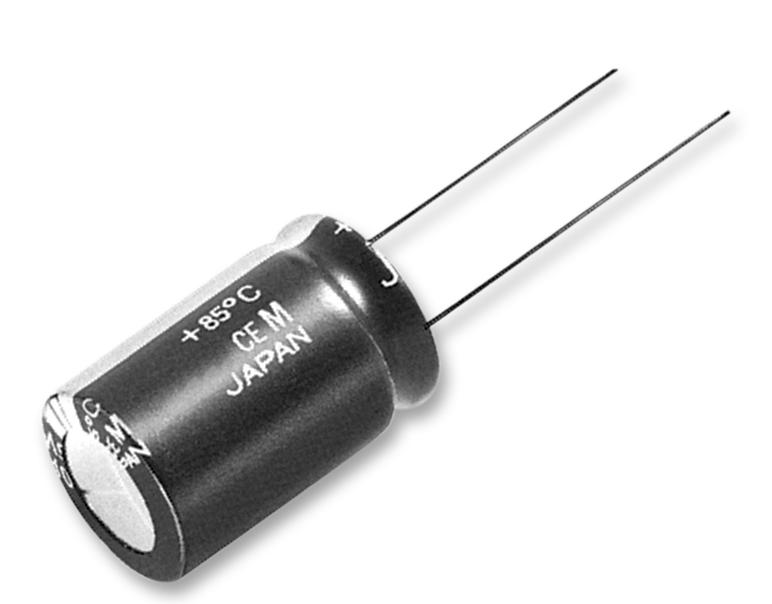

PANASONIC - ECA1CAK470X - Electrolytic Capacitor, 47 µF, 16 V, ± 20%, Radial Leaded, 2000 hours @ 85°C, Polar
- Capacitance: 47µF
- Voltage Rating: 16V
- Product Range: AK Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Radial Leaded
- Diameter: 5mm
- Lead Spacing: 2.5mm
- Height: 7mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Lifetime @ Temperature: 2000 hours @ 85°C
- ESR: -
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 20%
- Capacitor Application: Audio
- External Length / Height: 7mm
- Lead Diameter: 0.45mm
- Leakage Current: 3µA
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +85°C
- Operating life Time: 2000h
- Ripple Current AC: 70mA
- Tolerance -: 20%
- Voltage Rating V DC: 16V
