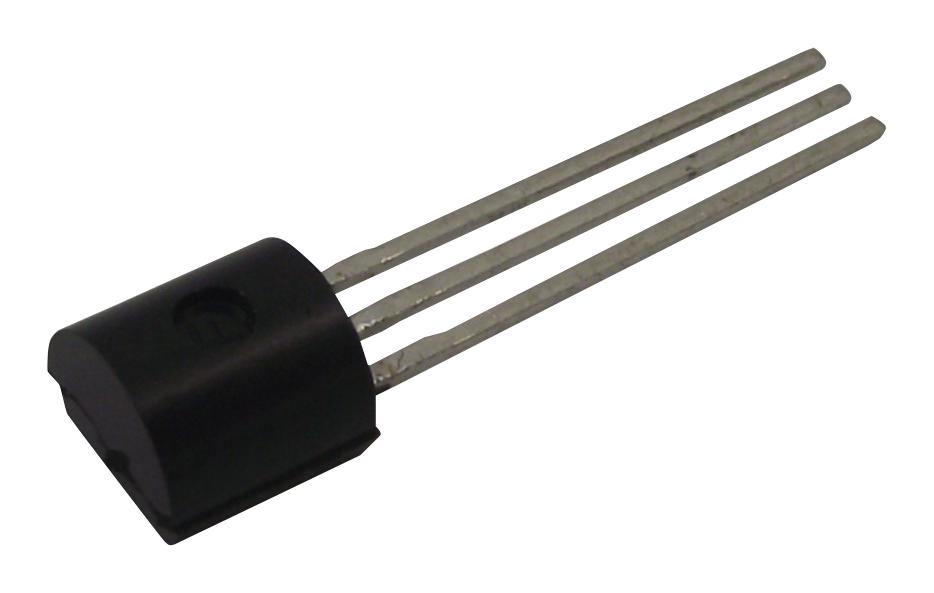

LITTELFUSE - EC103D - Thyristor, 400 V, 200 µA, 510 mA, 800 mA, TO-92, 3 Pins
- Peak Repetitive Off-State Voltage, Vdrm: 400V
- Gate Trigger Current Max, Igt: 200µA
- Current It av: 510mA
- On State RMS Current IT(rms): 800mA
- Thyristor Case Style: TO-92
- No. of Pins: 3Pins
- Peak Non Rep Surge Current Itsm 50Hz: 16A
- Holding Current Max Ih: 5mA
- Gate Trigger Voltage Max Vgt: 800mV
- Operating Temperature Max: 110°C
- Product Range: EC103xx Series
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (12-Jan-2017)
