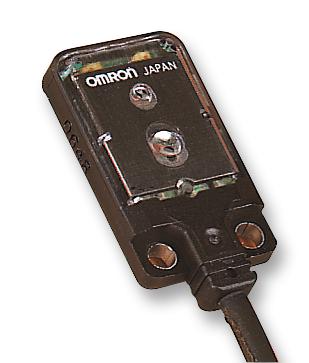

E3T-FD13 PHOTOSWITCH, Diffuse, PNP Omron

OMRONSKU: E3T-FD13 Order code: 7226445

Price:
Sale price€214,95

Tax included Shipping calculated at checkout

Stock:
In stock (5 units), ready to be shipped

Documents et téléchargements

Description

OMRON - E3T-FD13 - Photoelectric Sensor, E3T Series, Diffuse, 30 mm, PNP, Light On, 12 Vdc to 24Vdc

  • Sensor Output: PNP
  • Sensing Range Max: 30mm
  • Supply Voltage DC Min: 12V
  • Supply Voltage DC Max: 24V
  • Output Current: 50mA
  • Product Range: E3T Series
  • External Depth: 3.7mm
  • External Length / Height: 20.8mm
  • External Width: 12mm
  • IP / NEMA Rating: IP67
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -25°C
  • Output Current Max: 50mA
  • Response Time: 1ms
  • Sensing Distance Max: 30mm
  • Sensing Distance Min: 5mm
  • Sensing Range: 5mm to 30mm
  • Sensor Input: Optical
  • Supply Voltage Range DC: 12V to 24V
