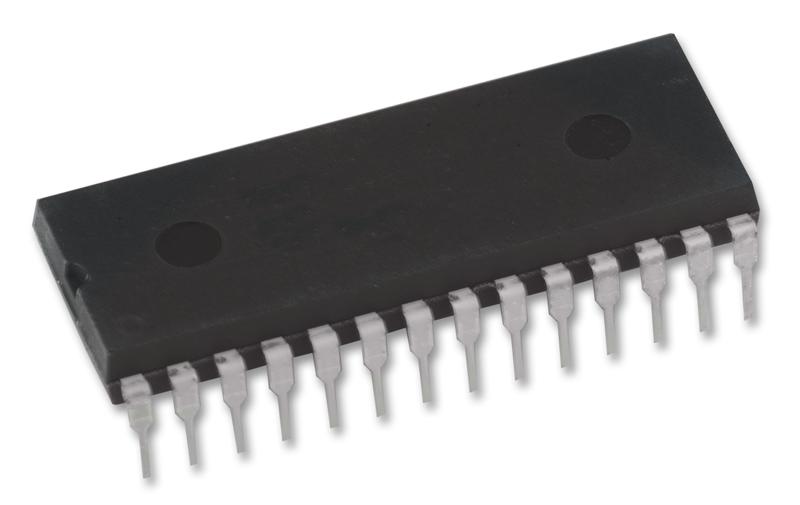

MICROCHIP - DSPIC33FJ128GP802-I/SP - Digital Signal Controller, dsPIC33F, 40 MHz, 128 KB, 21 I/O's, ECAN, I2C, SPI, UART, 2.75 V
- Product Range: dsPIC33F Series
- Core Frequency: 40MHz
- Flash Memory Size: 128KB
- No. of I/O's: 21I/O's
- Embedded Interface Type: ECAN, I2C, SPI, UART
- Core Supply Voltage: 2.75V
- DSC Case Style: DIP
- No. of Pins: 28Pins
- Supply Voltage Min: 3V
- Supply Voltage Max: 3.6V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: AEC-Q100
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 33
- DSP Type: Fixed / Floating Point
- Logic Function Number: 33FJ128GP802
- Operating Temperature Range: -40°C to +85°C
- RAM Memory Size: 16KB
- Supply Voltage Range: 3V to 3.6V
- Termination Type: Through Hole
