Description

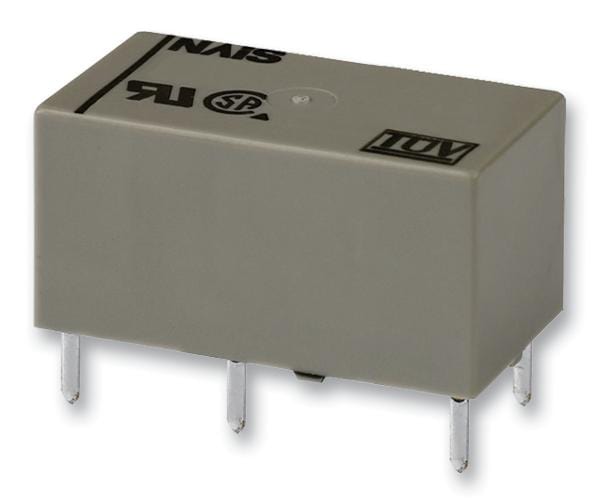

PANASONIC - DSP2A-DC24V - Power Relay, DPST-NO, 24 VDC, 5 A, DSP, Through Hole, Non Latching
- Contact Configuration: DPST-NO
- Coil Voltage: 24VDC
- Contact Current: 5A
- Product Range: DSP Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 250V
- Relay Terminals: Solder
- Contact Voltage VDC: 30V
- Contact Material: Silver Tin Oxide
- Coil Resistance: 1.92kohm
- SVHC: No SVHC (07-Jul-2017)
- Approvals & Standards: CSA, UL
