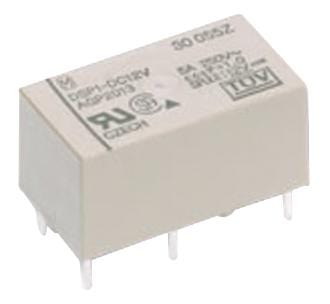

DSP1A-DC5V Relay, SPST-NO, 250VAC, 30Vdc, 8A Panasonic

PANASONICSKU: DSP1A-DC5V Order code: 2095625

Price:
Sale price€11,22

Tax included Shipping calculated at checkout

Stock:
In stock (192 units), ready to be shipped

Documents et téléchargements

Description

PANASONIC - DSP1A-DC5V - General Purpose Relay, DSP Series, Power, Non Latching, SPST-NO, 5 VDC, 8 A

  • Contact Configuration: SPST-NO
  • Coil Voltage: 5VDC
  • Contact Current: 8A
  • Product Range: DSP Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Tin Oxide
  • Coil Resistance: 83ohm
  • SVHC: No SVHC (07-Jul-2017)
  • Approvals & Standards: CSA, UL
  • Coil Current: 60mA
  • Coil Voltage VDC Nom: 5V
  • Contact Current Max: 8A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 30V
  • External Depth: 20.2mm
  • External Height: 10.5mm
  • External Width: 11mm
  • Nom Operating Power: 300mW
  • Relay Type: Power - General Purpose
