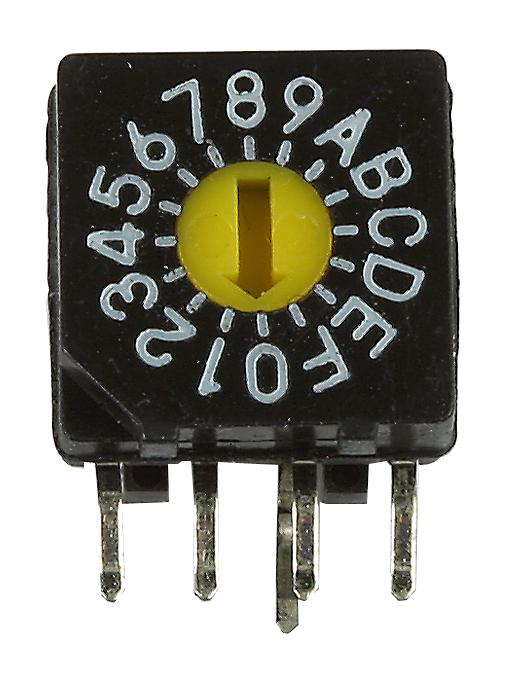

DRR3016 Switch, Hex, Vert Knitter-Switch

KNITTER-SWITCHSKU: DRR3016 Order code: 9810439

Price:
Sale price€9,63

Tax included Shipping calculated at checkout

Stock:
In stock (3381 units), ready to be shipped

Documents et téléchargements

Description

KNITTER-SWITCH - DRR3016 - Rotary Switch, 16 Position, 1 Pole, 22.5 °, 30 mA, DRR3000

  • No. of Switch Positions: 16 Position
  • No. of Poles: 1 Pole
  • Angle of Throw: 22.5°
  • Contact Current AC Max: 30mA
  • Contact Voltage AC Max: -
  • Product Range: DRR3000 Series
  • Illumination: Non Illuminated
  • Contact Current DC Max: 30mA
  • Contact Voltage DC Max: 50V
  • SVHC: No SVHC (15-Jan-2018)
  • Angle: 22.5°
  • Contact Current @ Contact Voltage DC Max: 30mA
  • Contact Current Rating: 100mA
  • Contact Resistance: 100mohm
  • Dielectric Strength VDC: 250V
  • External Depth: 6.9mm
  • External Length / Height: 10mm
  • External Width: 10mm
  • Indexing Angle: 22.5°
  • No. of Mechanical Operations: 20000
  • No. of Positions: 16Ways
  • Operating Temperature Max: 75°C
  • Operating Temperature Min: -25°C
  • Pin Configuration: 0.65x0.35mm
