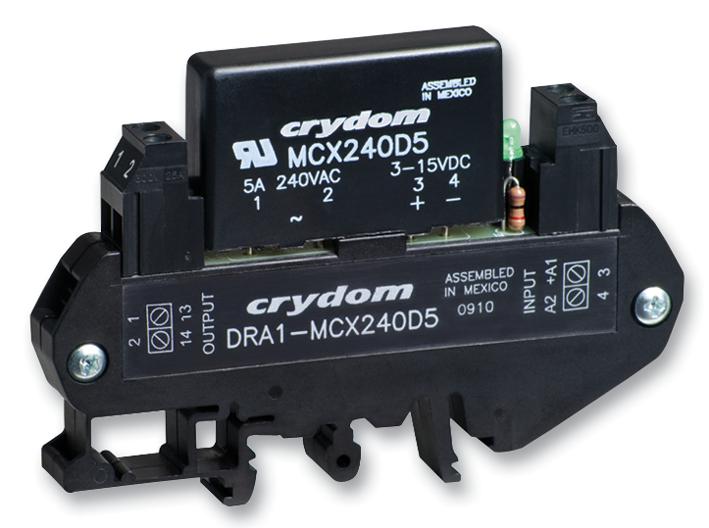

SENSATA/CRYDOM - DRA1-MCX240D5 - Solid State Relay, SPST-NO, 5 A, 280 VAC, DIN Rail, Cage Clamp, Zero Crossing
- Contact Configuration: SPST-NO
- Load Current: 5A
- Operating Voltage Max: 280VAC
- Relay Mounting: DIN Rail
- Relay Terminals: Cage Clamp
- Switching Mode: Zero Crossing
- Operating Voltage Min: 12VAC
- Control Voltage Min: 3VDC
- Control Voltage Max: 15VDC
- Product Range: -
- SVHC: No SVHC (12-Jan-2017)
- Control Current @ 5VDC: 15mA
- Control Voltage DC Max: 15VDC
- Control Voltage DC Min: 3VDC
- Control Voltage Range: 3V DC to 15V DC
- Control Voltage Type: DC
- Isolation Voltage: 4kV
- Load Current RMS Max: 5A
- Operating Voltage Range: 12V AC to 280V AC
- Peak Surge Current: 250A
- RMS Load Current Min: 0.06A
- RMS Load Voltage Max: 280V
- RMS Load Voltage Min: 12V
- Surge Current: 239A
