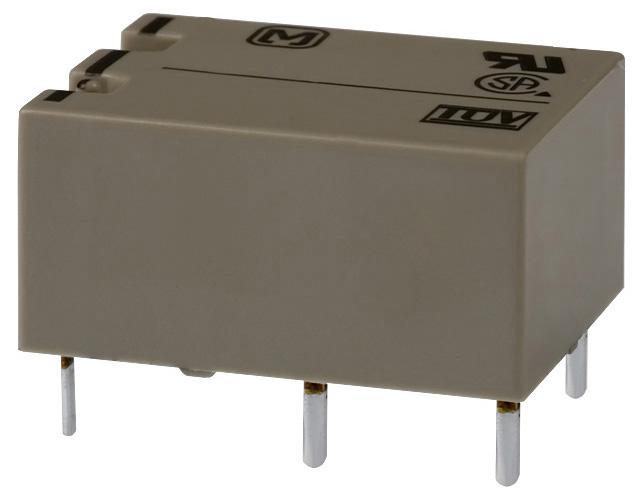

DK1A-5V-F Relay, SPST-NO, 250VAC, 30Vdc, 10A Panasonic

PANASONICSKU: DK1A-5V-F Order code: 1703719

Price:
Sale price€11,21

Tax included Shipping calculated at checkout

Stock:
In stock (566 units), ready to be shipped

Documents et téléchargements

Description

PANASONIC - DK1A-5V-F - General Purpose Relay, DK Series, Power, Non Latching, SPST-NO, 5 VDC, 10 A

  • Contact Configuration: SPST-NO
  • Coil Voltage: 5VDC
  • Contact Current: 10A
  • Product Range: DK Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Tin Oxide
  • Coil Resistance: 125ohm
  • SVHC: No SVHC (07-Jul-2017)
  • Coil Current: 40mA
  • Coil Voltage VDC Nom: 5V
  • Contact Current Max: 10A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 30V
  • External Depth: 20mm
  • External Height: 9.7mm
  • External Width: 12.5mm
  • Nom Operating Power: 200mW
  • Relay Type: Power - General Purpose
