Description

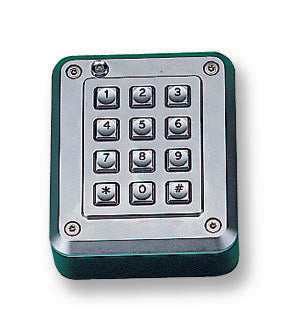

STORM INTERFACE - DE1KT101 - Keypad, STRIKEMASTER, 3 x 4, Matrix, Chromed Zinc
- Product Range: STRIKEMASTER Series
 - Keypad Array: 3 x 4
 - Keypad Output: Matrix
 - Housing Material: Chromed Zinc
 - Contact Current Max: -
 - Contact Voltage DC Nom: -
 - No. of Keys: 12
 - Panel Cutout Width: 99.5mm
 - Panel Cutout Height: 118.5mm
 - SVHC: No SVHC (27-Jun-2018)
 - Case Material: Metal
 - Colour: Silver
 - Contact Voltage DC Max: 28V
 - External Depth: 15mm
 - External Length / Height: 118mm
 - External Width: 99.5mm
 - Fixing Centres LxW: 74 mm x 93mm
 - Height: 118.5mm
 - IP / NEMA Rating: IP65
 - Material: Metal
 - No. of Mechanical Operations: 2
 - Operating Temperature Max: 85°C
 - Operating Temperature Min: -20°C
 - Output Power Max: 12W
 - Power Rating: 12W
 - Static Resistance: 12.5kV
 - Supply Voltage AC Max: 20V
 - Supply Voltage AC Min: 9V
 - Supply Voltage DC Max: 28V
 - Supply Voltage DC Min: 11V
