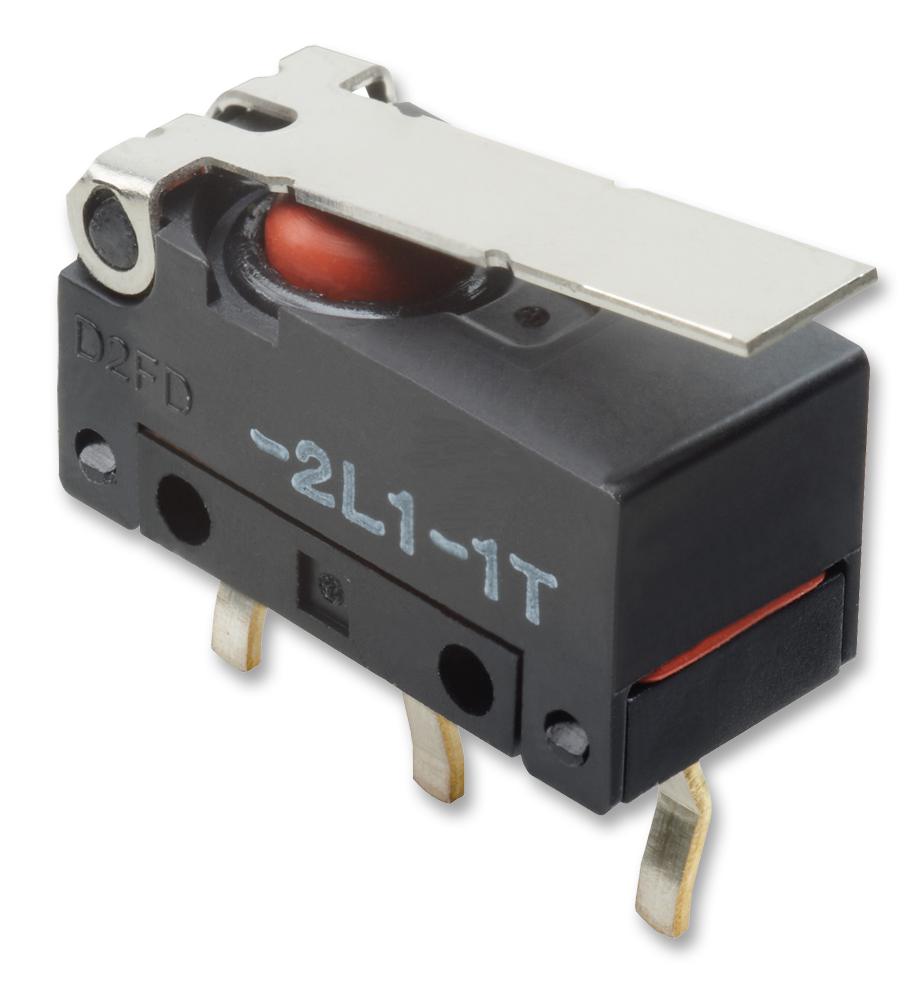

D2FD-2L1-1H Microswitch, 2A, Lever, Solder Omron

OMRONSKU: D2FD-2L1-1H Order code: 2134438

Price:
Sale price€5,92

Tax included Shipping calculated at checkout

Stock:
In stock (32 units), ready to be shipped

Documents et téléchargements

Description

OMRON - D2FD-2L1-1H - Microswitch, Ultra Subminiature, Hinge Lever, SPDT, Solder, 2 A, 30 VDC

  • Microswitch Type: Ultra Subminiature
  • Microswitch Actuator: Hinge Lever
  • Contact Configuration: SPDT
  • Switch Terminals: Solder
  • Contact Current Max: 2A
  • Contact Voltage DC Nom: 30VDC
  • Product Range: -
  • Contact Voltage AC Nom: 125VAC
  • Operating Force Max: 0.65N
  • Contact Resistance: 30mohm
  • No. of Electrical Operations: 30000
  • No. of Mechanical Operations: 300000
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -20°C
