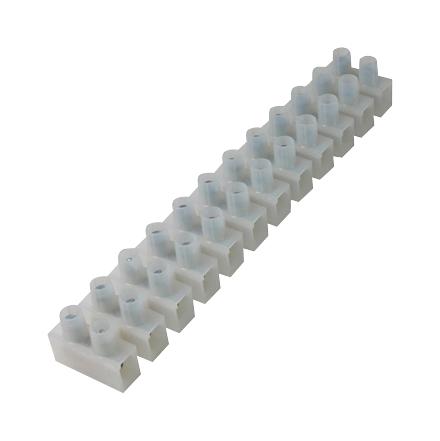

CAMDENBOSS - CTSN434/12W - Standard Terminal Block, CTSN, 12 Contacts, 12 mm, Terminal Block, Pluggable, 8 AWG
- Product Range: CTSN Series
- No. of Contacts: 12Contacts
- Pitch Spacing: 12mm
- Connector Type: Terminal Block, Pluggable
- Connector Mounting: -
- Wire Size AWG Max: 8AWG
- Wire Size AWG Min: -
- Contact Plating: Nickel Plated Contacts
- Contact Material: Brass
- SVHC: No SVHC (15-Jan-2019)
- Approval Category: UL 94V-2
- Colour: Natural
- Current Rating: 50A
- External Depth: 18.5mm
- External Length / Height: 140mm
- External Width: 23mm
- No. of Positions: 12Ways
- No. of Rows: 2 Row
- Operating Temperature Max: 110°C
- Rated Current: 50A
- Rated Voltage: 750V
- Row Pitch: 12mm
- Termination Method: Screw
- Voltage Rating VAC: 380V
- Wire Area Size Max: 10mm²
