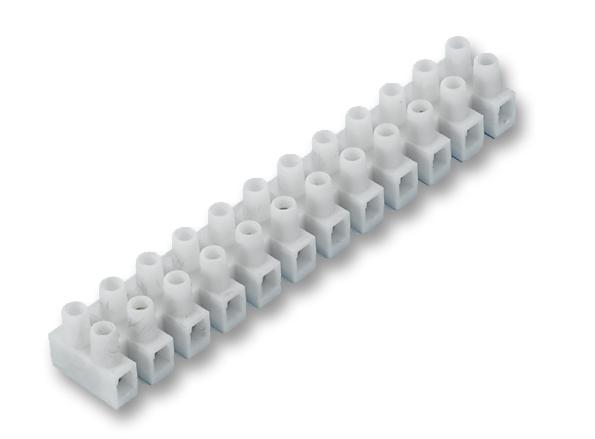

CAMDENBOSS - CTSN431/12/F - Panel Mount Barrier Terminal Block, 1 Row, 12 Ways, 8 mm, 17.5 A
- No. of Rows: 1 Row
- No. of Positions: 12Ways
- Wire Size AWG Min: -
- Wire Size AWG Max: -
- Pitch Spacing: 8mm
- Rated Current: 17.5A
- Rated Voltage: 450V
- Product Range: CTSN431 Series
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CE, IMQ
- Connector Mounting: Cable Mount
- Connector Type: Terminal Block, Pluggable
- Contact Material: Brass
- Contact Plating: Nickel Plated Contacts
- External Length / Height: 15.3mm
- External Width: 16mm
- Fixing Hole Diameter: 2.5mm
- Flammability Rating: UL94V-2
- Material: Self extinguishing Polypropylene
- No. of Rows: 1Rows
- Operating Temperature Max: 110°C
- Suitable Screw: M3
- Voltage Rating AC Max: 450VAC
- Wire Connection Method: Screw
