Description

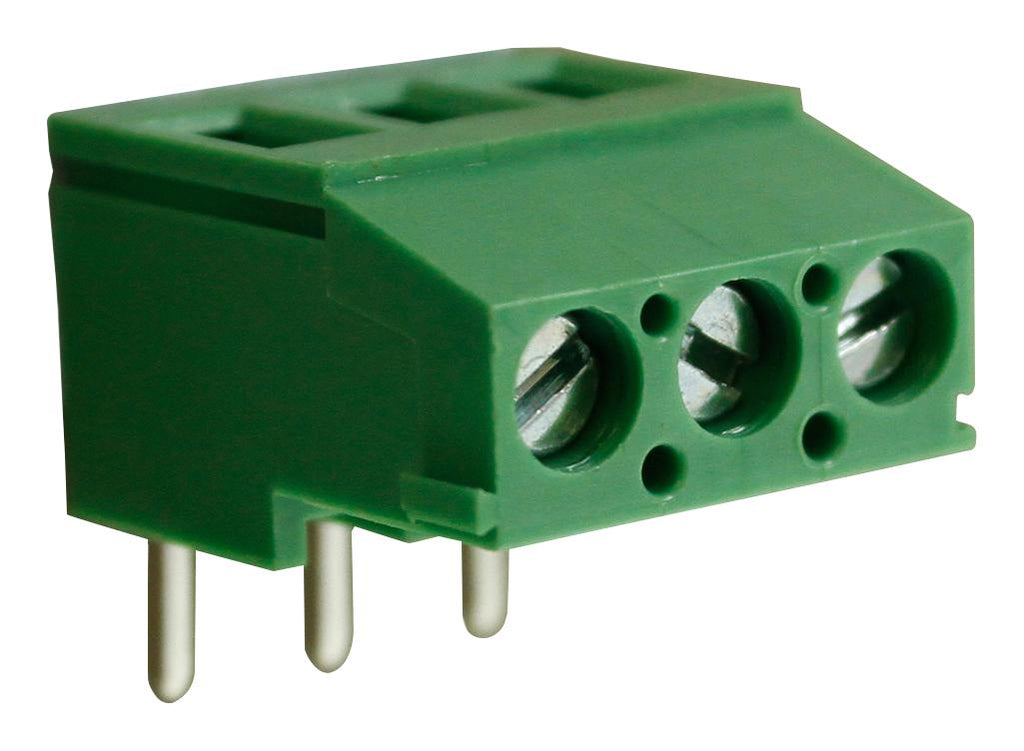

CAMDENBOSS - CTBP0758/3 - Wire-To-Board Terminal Block, 5.08 mm, 3 Ways, 26 AWG, 12 AWG, 2.5 mm², Screw
- Pitch Spacing: 5.08mm
- No. of Positions: 3Ways
- Wire Size AWG Min: 26AWG
- Wire Size AWG Max: 12AWG
- Conductor Area CSA: 2.5mm²
- Wire Connection Method: Screw
- Rated Current: 20A
- Rated Voltage: 300V
- Block Orientation: Through Hole Vertical
- Product Range: CamBlock Plus Series
- SVHC: No SVHC (15-Jan-2019)
