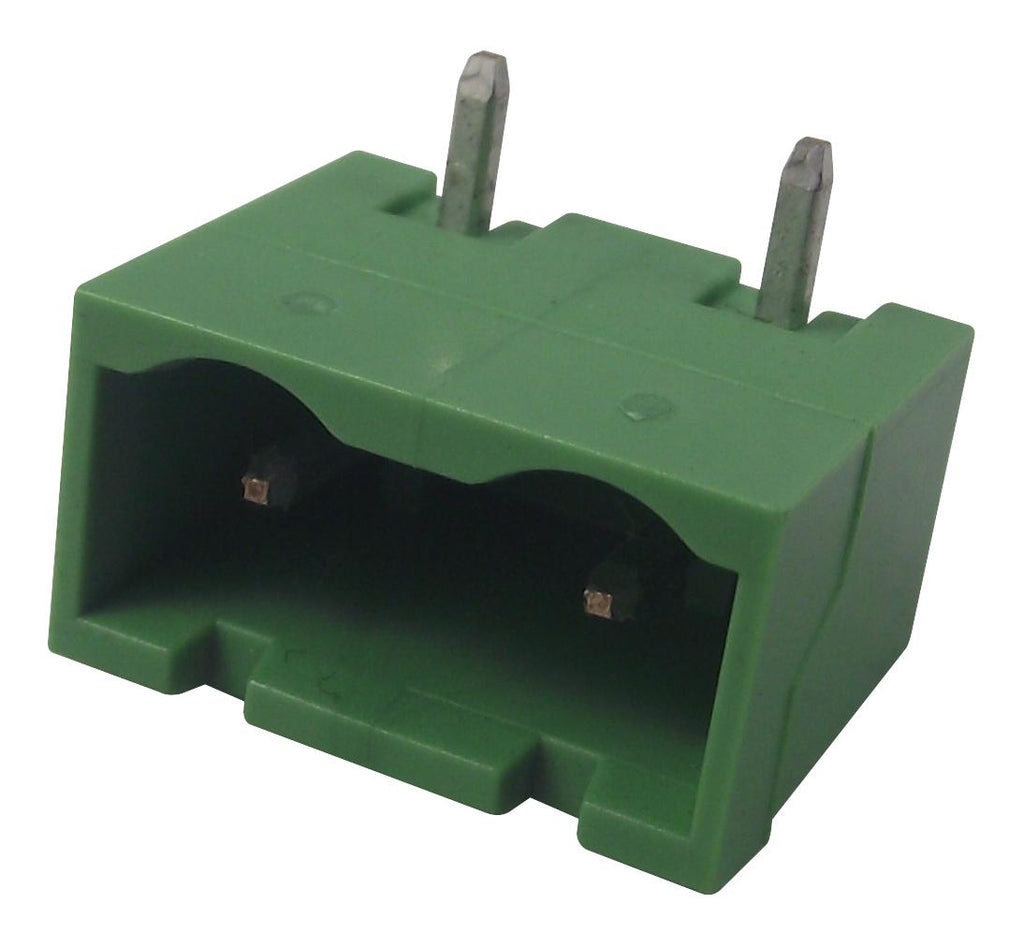

CAMDENBOSS - CTB9550/2 - Standard Terminal Block, Header, CTB9550, 2 Contacts, 7.5 mm, Terminal Block, PCB
- Product Range: CTB9550 Series
- No. of Contacts: 2Contacts
- Pitch Spacing: 7.5mm
- Connector Type: Terminal Block, PCB
- Connector Mounting: Through Hole Mount
- Wire Size AWG Max: -
- Wire Size AWG Min: -
- Contact Plating: Copper Plated Contacts
- Contact Material: Brass
- SVHC: No SVHC (15-Jan-2019)
- Colour: Green
- Contact Termination: Through Hole Right Angle
- Contact Termination Type: Through Hole
- Current Rating: 12A
- Flammability Rating: UL94V-0
- Gender: Plug
- Lead Spacing: 7.5mm
- No. of Rows: 1Rows
- Operating Temperature Max: 125°C
- Operating Temperature Min: -20°C
- Termination Method: Solder
- Thread Size: M3
- Voltage Rating VAC: 750V
- Wire Area Size Max: 2.5mm²
