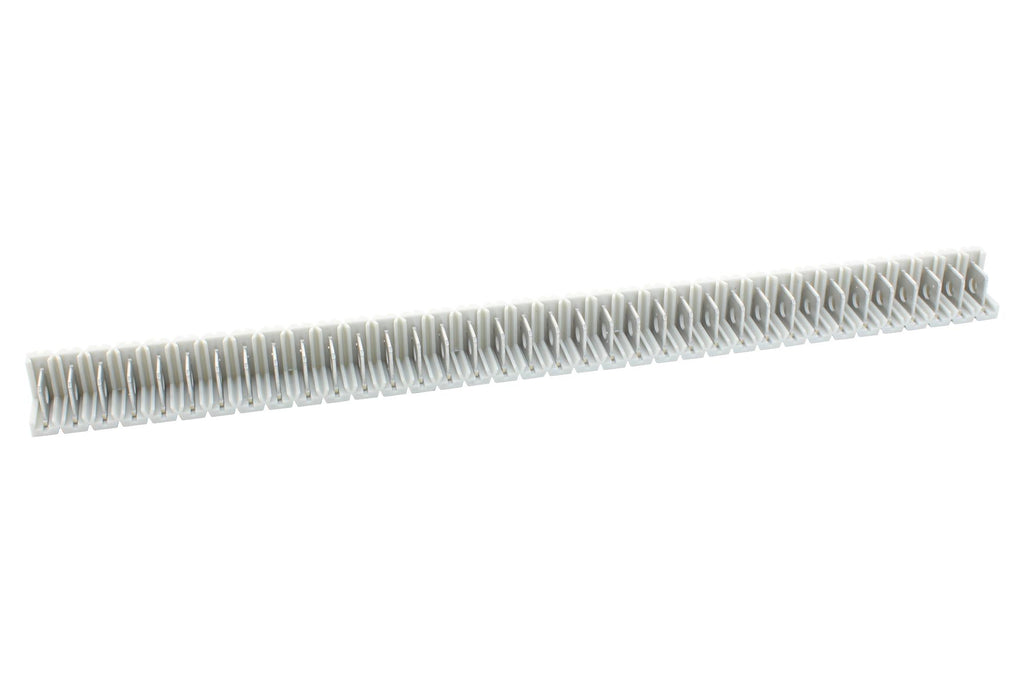

CAMDENBOSS - CTB7300/36M - Terminal Block, 36 Ways, 13.5 A, 380 V, Through Hole Right Angle
- Pitch Spacing: -
- No. of Positions: 36Ways
- Wire Size (AWG): -
- Conductor Area CSA: 4mm²
- Wire Connection Method: Clamp
- Rated Current: 13.5A
- Rated Voltage: 380V
- Product Range: CTB7300 Series
- SVHC: No SVHC (15-Jan-2019)
- Block Orientation: Through Hole Right Angle
- Colour: Grey
- Connector Mounting: PCB Mount
- Connector Type: Terminal Block, PCB
- Contact Material: Steel
- Contact Plating: Zinc Plated Contacts
- Flammability Rating: UL94V-0
- Operating Temperature Max: 125°C
- Operating Temperature Min: -20°C
- Thread Size: M2.5
- Voltage Rating AC Max: 380V
- Voltage Rating VAC: 380V
- Wire Area Size Max: 4mm²
