Description

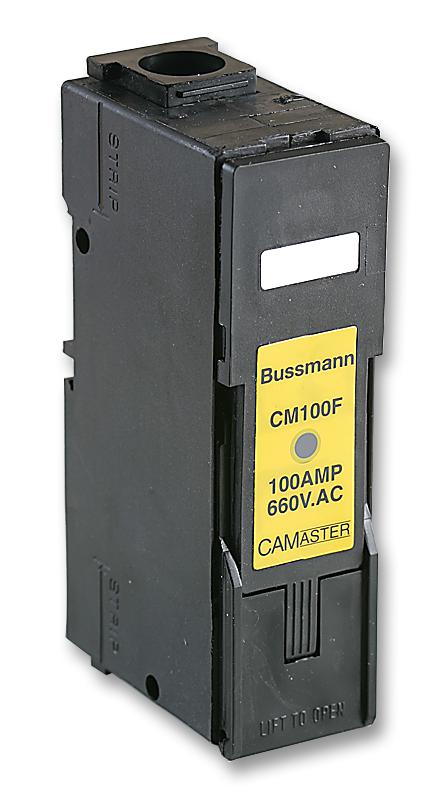

EATON BUSSMANN - CM100F - Fuseholder, DIN Rail, 690V, 100A, OSD Fuse Links
- Fuse Holder Type: Cartridge Fuse Holder
- Fuse Current: 100A
- Fuse Size Held: -
- Holder Terminals: -
- No. of Fuses: 1Fuses
- Product Range: -
- Voltage Rating VAC: 600V
- Voltage Rating V DC: -
- Approval Bodies: BS, IEC
- Colour: Black
- Conductor Area CSA: 70mm²
- Current Rating: 100A
- External Depth: 60mm
- External Length / Height: 125mm
- External Width: 35.6mm
- Fuse Size Code: A3
- Height: 125mm
- Termination Method: Screw
