Description

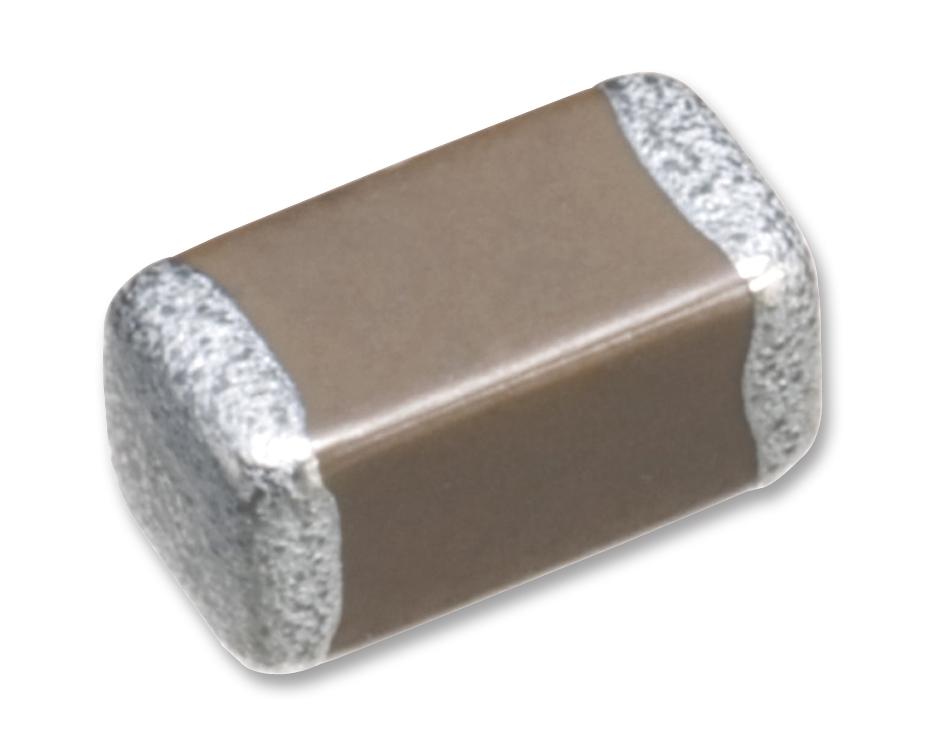

TDK - CGA1A2C0G1E101J030BA - SMD Multilayer Ceramic Capacitor, 100 pF, 25 V, 0201 [0603 Metric], ± 5%, C0G / NP0, CGA
- Capacitance: 100pF
- Voltage Rating: 25V
- Ceramic Capacitor Case: 0201 [0603 Metric]
- Capacitance Tolerance: ± 5%
- Dielectric Characteristic: C0G / NP0
- Product Range: CGA Series
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Automotive Qualification Standard: AEC-Q200
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
