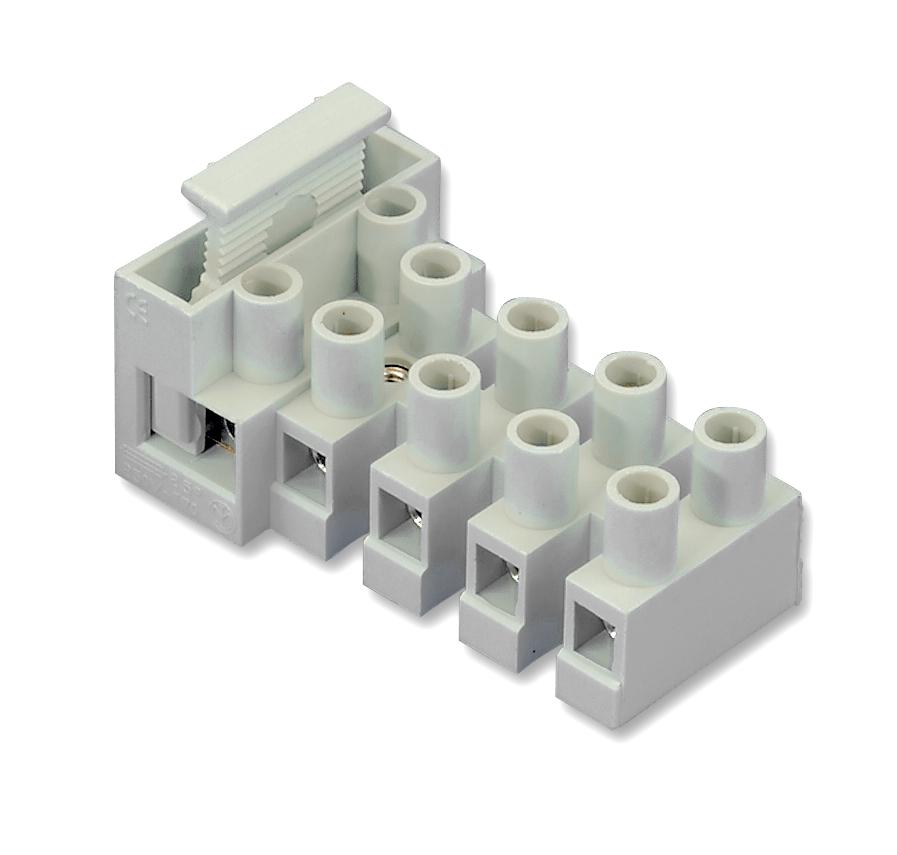

CFTBN/4 Terminal Block, Fused, 4Pos Camdenboss

CAMDENBOSSSKU: CFTBN/4 Order code: 3882822

Price:
Sale price€5,67

Tax included Shipping calculated at checkout

Stock:
In stock (70 units), ready to be shipped

Documents et téléchargements

Description

CAMDENBOSS - CFTBN/4 - Fused Terminal Block, 4 Ways, 4 mm², Screw, 20 A, 450 V

  • No. of Positions: 4Ways
  • Wire Size (AWG): -
  • Conductor Area CSA: 4mm²
  • Wire Connection Method: Screw
  • Rated Current: 20A
  • Rated Voltage: 450V
  • Fuse Size Held: 5mm x 20mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Breaking Capacity Current AC: 250A
  • Colour: Grey
  • Connector Mounting: Cable Mount
  • External Length / Height: 28mm
  • External Width: 20mm
  • Flammability Rating: UL94V-0
  • Fuse Current: 13A
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -20°C
  • Pitch Spacing: 10mm
  • Voltage Rating AC Max: 450V
  • Voltage Rating VAC: 450V
  • Wire Area Size Max: 2.5mm²
