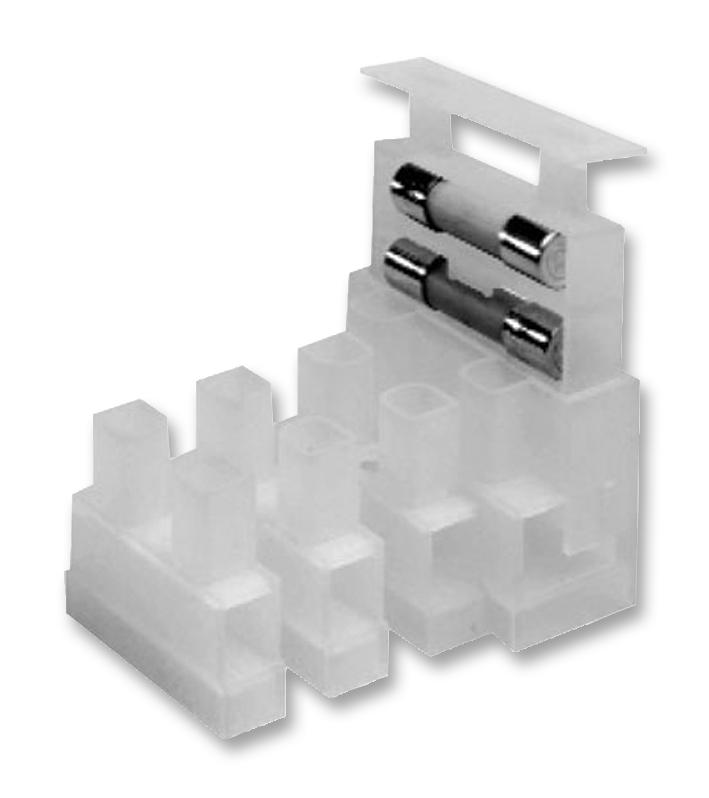

CAMDENBOSS - CFTBN/3 - Fused Terminal Block, 3 Ways, 4 mm², Screw, 20 A, 450 V
- No. of Positions: 3Ways
- Wire Size (AWG): -
- Conductor Area CSA: 4mm²
- Wire Connection Method: Screw
- Rated Current: 20A
- Rated Voltage: 450V
- Fuse Size Held: 5mm x 20mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Connector Mounting: Cable Mount
- Flammability Rating: UL94V-0
- Fuse Current: 13A
- Operating Temperature Max: 120°C
- Operating Temperature Min: -20°C
- Pitch Spacing: 10mm
- Voltage Rating VAC: 450V
- Wire Area Size Max: 2.5mm²
