Description

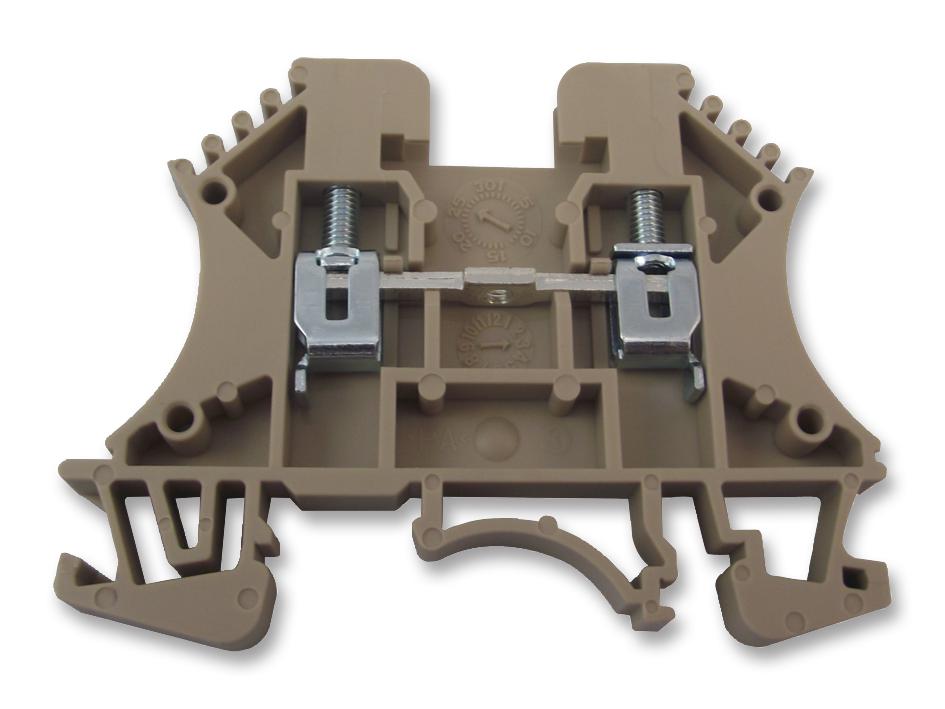

MULTICOMP PRO - CDU2.5 - DIN Rail Mount Terminal Block, 2 Ways, 22 AWG, 10 AWG, 2.5 mm², Screw, 24 A
- No. of Positions: 2Ways
- Wire Size AWG Min: 22AWG
- Wire Size AWG Max: 10AWG
- Conductor Area CSA: 2.5mm²
- Wire Connection Method: Screw
- Rated Current: 24A
- Rated Voltage: 600V
- No. of Levels: 1
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Connector Mounting: DIN Rail Mount
- Connector Type: Terminal Block, DIN Rail
- Wire Area Size Max: 2.5mm²
- Wire Area Size Min: 0.5mm²
- Working Voltage: 600V
