Description

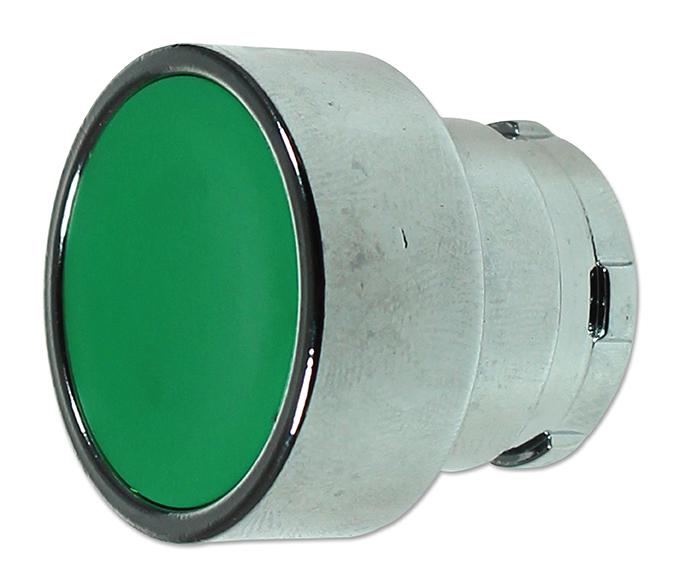

CAMDENBOSS - CCTTR30GW - Industrial Pushbutton Switch, 22.5 mm, Flush, Green
- Switch Operation: -
- Contact Configuration: -
- Contact Voltage AC Nom: 400V
- Contact Voltage DC Nom: 250V
- Contact Current Max: 10A
- Switch Terminals: Quick Connect, Solder
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Actuator / Cap Colour: Green
- Colour: Green
- Contact Current AC Max: 10A
- Contact Current DC Max: 2.8A
- Contact Voltage VAC: 24V
- Contact Voltage VDC: 24V
- IP Rating: IP65
- Illumination Colour: Non-illuminated
- Material: Metal
- Panel Cutout Diameter: 22.5mm
- Pushbutton Actuator Style: Flush
- Pushbutton Switch Type: Industrial
- Switch Mounting: Panel
