Description

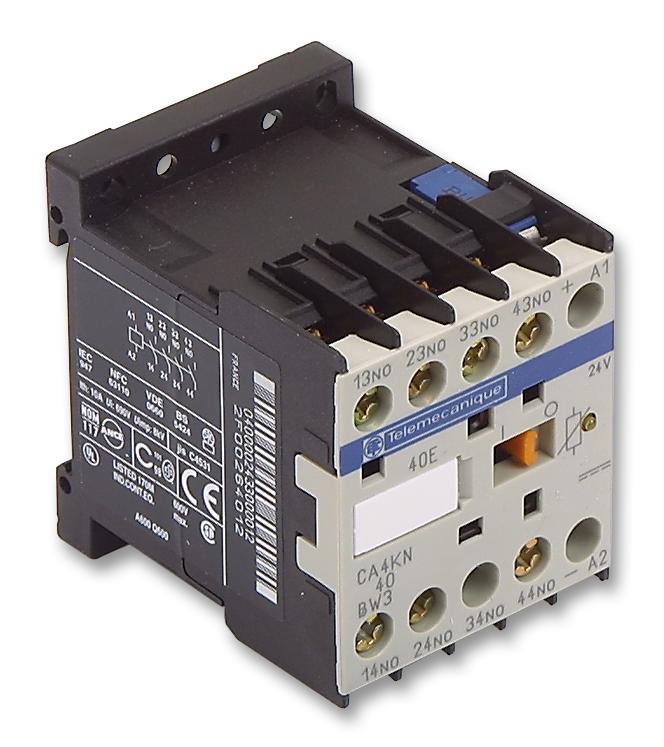

SCHNEIDER ELECTRIC - CA3KN40BD - Contactor, 10 A, DIN Rail, 600 VAC, 4NO, 4 Pole
- Load Current Inductive: 10A
- Relay Mounting: DIN Rail
- Operating Voltage: 600VAC
- Contact Configuration: 4NO
- No. of Poles: 4 Pole
- Switching Power AC3: -
- Switching Current AC1: -
- Coil Voltage VAC Nom: -
- Coil Voltage VDC Nom: 24V
- Switching Power AC1: -
- Load Current Resistive: 10A
- Switching Current AC3: -
- Product Range: TeSys CAK Series
- SVHC: No SVHC (15-Jan-2018)
- AC Coil Power: 4.5VA
- Approval Bodies: BIA, INRS
- Coil Operating Lower Percent Limit: 70%
- Coil Operating Upper Percent Limit: 130%
- Coil Type: DC
- Contact Current Max: 10A
- Contact Voltage DC Max: 250V
- DC Coil Power: 1.5W
- External Depth: 57mm
- External Length / Height: 58mm
- External Width: 45mm
- Nom Operating Power: 3W
- Relay Type: Contactor
