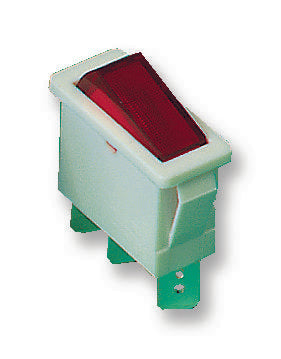

ARCOLECTRIC (BULGIN LIMITED) - C5503FQNAE - Rocker Switch, Off-On, SPST, Illuminated, Panel Mount, Red, 5500
- Switch Operation: Off-On
- Contact Configuration: SPST
- Illumination: Illuminated
- Switch Mounting: Panel
- Actuator / Cap Colour: Red
- Product Range: 5500 Series
- Contact Current Max: 16A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: -
- SVHC: No SVHC (27-Jun-2018)
- Bezel Height: 14mm
- Bezel Width: 30.2mm
- Colour: White
- Contact Current AC Max: 16A
- Contact Resistance: 10Mohm
- Contact Voltage AC Max: 250V
- External Depth: 16.2mm
- Illumination Colour: Red
- Insulation Resistance: 20Mohm
- No. of Electrical Operations: 10000
- No. of Mechanical Operations: 50000
- Operating Temperature Max: 85°C
- Operating Temperature Min: 0°C
- Panel Cutout Size: 28.2 x 11.5 mm
- Panel Cutout Width: 11.5mm
- Panel Cutout length: 28.2mm
- Tab Width: 6.3mm
