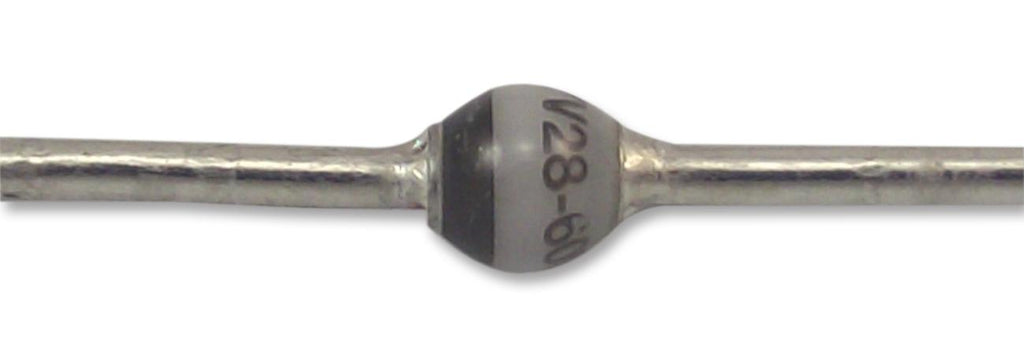

BYV28-600-Tr Diode, Ultrafast, 3.5A, 600v Vishay

VISHAYSKU: BYV28-600-TR Order code: 1469374

Price:
Sale price€2,61

Tax included Shipping calculated at checkout

Stock:
In stock (1169 units), ready to be shipped

Documents et téléchargements

Description

VISHAY - BYV28-600-TR - Fast / Ultrafast Diode, 600 V, 3.5 A, Single, 1.35 V, 210 ns, 90 A

  • Repetitive Reverse Voltage Vrrm Max: 600V
  • Forward Current If(AV): 3.5A
  • Diode Configuration: Single
  • Forward Voltage VF Max: 1.35V
  • Reverse Recovery Time trr Max: 210ns
  • Forward Surge Current Ifsm Max: 90A
  • Operating Temperature Max: 175°C
  • Diode Case Style: SOD-64
  • No. of Pins: 2 Pin
  • Product Range: BYV28 Series
  • Automotive Qualification Standard: AEC-Q101
  • SVHC: Lead (15-Jan-2019)
  • Current Ifsm: 90A
  • Diode Type: Standard Recovery
  • Junction Temperature Tj Max: 175°C
  • No. of Pins: 2Pins
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +175°C
  • Reverse Recovery Time trr Typ: 50ns
  • Termination Type: Axial Leaded
