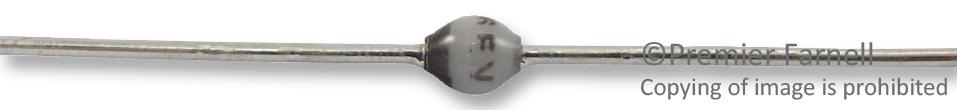

BYV26E-TR DIODE, POWER RECTIFIER, FAST VISHAY

VISHAYSKU: BYV26E-TR Order code: 1651071

Price:
Sale price€0,89

Tax included Shipping calculated at checkout

Stock:
In stock (28938 units), ready to be shipped

Documents et téléchargements

Description

VISHAY - BYV26E-TR - Fast / Ultrafast Diode, 1 kV, 1 A, Single, 2.5 V, 75 ns, 30 A

  • Repetitive Reverse Voltage Vrrm Max: 1kV
  • Forward Current If(AV): 1A
  • Diode Configuration: Single
  • Forward Voltage VF Max: 2.5V
  • Reverse Recovery Time trr Max: 75ns
  • Forward Surge Current Ifsm Max: 30A
  • Operating Temperature Max: 175°C
  • Diode Case Style: SOD-57
  • No. of Pins: 2 Pin
  • Product Range: BYV26 Series
  • Automotive Qualification Standard: AEC-Q101
  • SVHC: Lead (15-Jan-2019)
  • Current Ifsm: 30A
  • Diode Type: Fast Recovery
  • Junction Temperature Tj Max: 175°C
  • No. of Pins: 2Pins
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +175°C
  • Reverse Recovery Time trr Typ: 75ns
  • Termination Type: Axial Leaded
