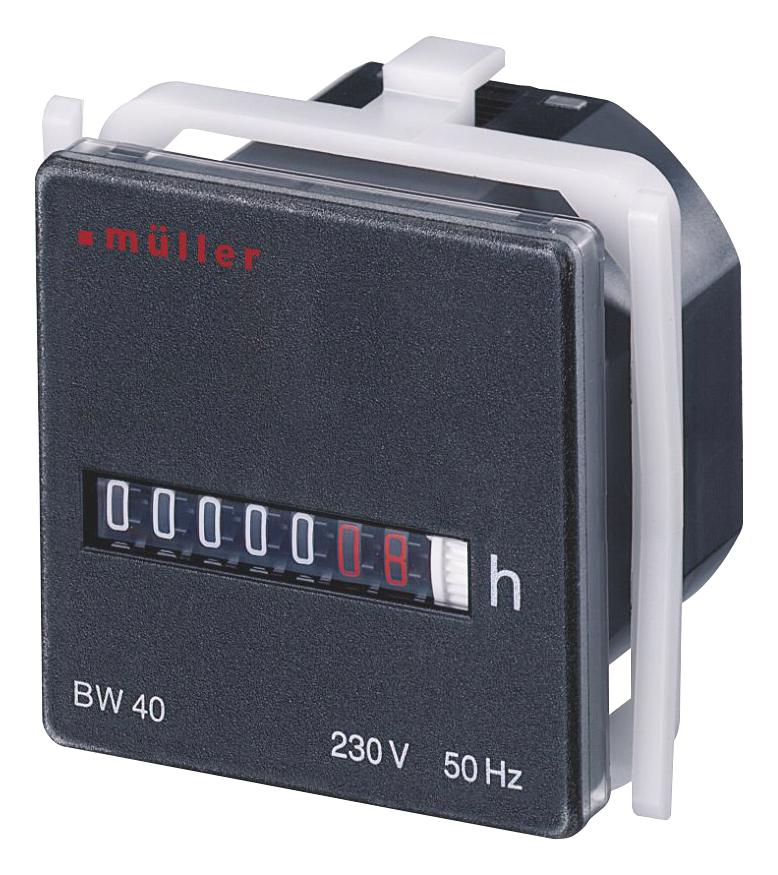

MULLER - BW40.18 24VAC - Panel Mount Timer, Elapsed, 20.4 V, 27.6 V, 0 s, 99999 h
- Supply Voltage Min: 20.4V
- Supply Voltage Max: 27.6V
- Time Min: 0s
- Time Max: 99999h
- Panel Cutout Height: -
- Panel Cutout Width: -
- Product Range: BW 40 Series
- SVHC: No SVHC (07-Jul-2017)
- Character Size: 4.4mm
- Clock Frequency: 50Hz
- Digit Height: 4.4mm
- External Depth: 34mm
- External Length / Height: 48mm
- External Width: 48mm
- Operating Temperature Max: 55°C
- Operating Temperature Min: -15°C
- Operating Temperature Range: -15°C to +55°C
- Operating Voltage Tolerance +: 15%
- Panel Cutout Size: 46 x 46 mm
- Power Consumption: 150mW
- Supply Voltage Range: 20.4V to 27.6V
- Supply Voltage V AC: 24V
- Time Range: 0h to 99999h
