Description

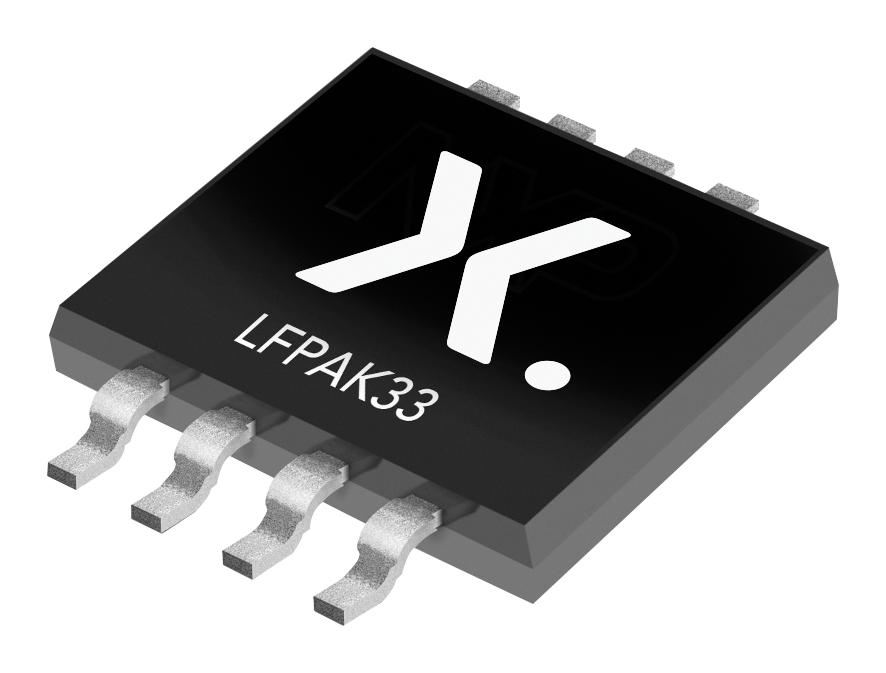

NEXPERIA - BUK9M12-60EX - Power MOSFET, N Channel, 60 V, 54 A, 0.009 ohm, SOT-1210, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 54A
- Drain Source Voltage Vds: 60V
- On Resistance Rds(on): 0.009ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 1.7V
- Power Dissipation Pd: 79W
- Transistor Case Style: SOT-1210
- No. of Pins: 8Pins
- Operating Temperature Max: 175°C
- Product Range: -
- Automotive Qualification Standard: AEC-Q101
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
