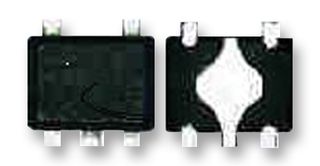

ROHM - BU31TA2WHFV-TR - Fixed LDO Voltage Regulator, 2.5V to 5.5V, 330mV Dropout, 3.1Vout, 200mAout, HVSOF-5
- Output Type: Fixed
- Input Voltage Min: 2.5V
- Input Voltage Max: 5.5V
- Fixed Output Voltage Nom.: 3.1V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 200mA
- Dropout Voltage Vdo: 330mV
- LDO Regulator Case Style: HVSOF
- No. of Pins: 5Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: 3.1V 200mA LDO Voltage Regulators
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: To Be Advised
- MSL: MSL 1 - Unlimited
- Output Voltage Nom.: 3.1V
