Description

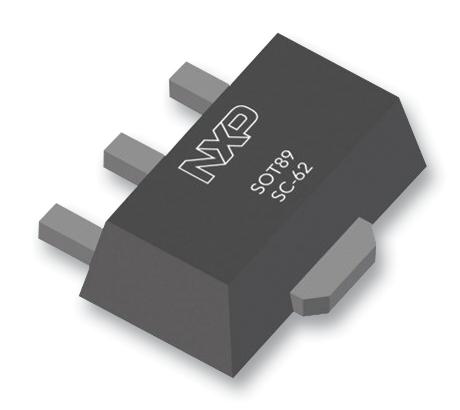

NEXPERIA - BST39,115 - Bipolar (BJT) Single Transistor, NPN, 350 V, 100 mA, 1.3 W, SOT-89, Surface Mount
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 350V
- Transition Frequency ft: 70MHz
- Power Dissipation Pd: 1.3W
- DC Collector Current: 100mA
- DC Current Gain hFE: 40hFE
- Transistor Case Style: SOT-89
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Collector Emitter Saturation Voltage Vce(on): 500mV
- Current Ic Continuous a Max: 50mA
- Gain Bandwidth ft Typ: 70MHz
- Hfe Min: 40
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Termination Type: Surface Mount Device
- Transistor Type: Power Bipolar
