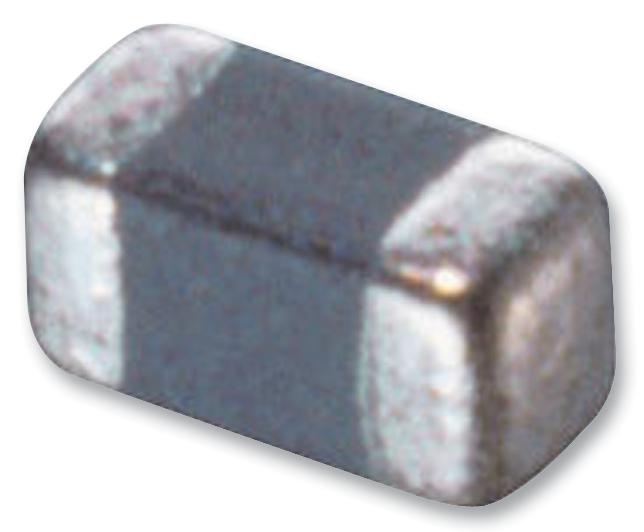

MURATA - BLM15BD102SN1D - Ferrite Bead, 0402 [1005 Metric], 1 kohm, 200 mA, BLM15B, 0.9 ohm, ± 25%
- Ferrite Case Style: 0402 [1005 Metric]
- Impedance @ 100MHz: 1kohm
- DC Current Rating: 200mA
- Product Range: BLM15B Series
- DC Resistance Max: 0.9ohm
- Impedance Tolerance: ± 25%
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Core Material: Ferrite
- Ferrite Mounting: SMD
- Operating Temperature Max: +125°C
- Operating Temperature Min: -55°C
- Resistance: 0.9ohm
