Description

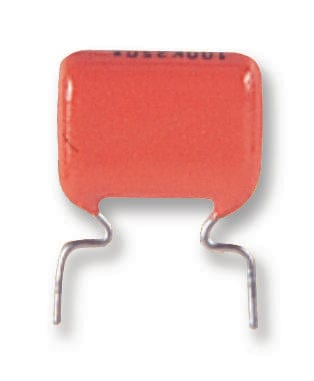

VISHAY - BFC246804106 - General Purpose Film Capacitor, Metallized PET, Radial Box - 2 Pin, 10 µF, ± 10%, 63 V, 100 V
- Capacitance: 10µF
- Voltage Rating: 100V
- Capacitor Dielectric Type: PET (Polyester)
- Capacitance Tolerance: ± 10%
- Product Range: MKT468 Series
- Capacitor Case Style: -
- Capacitor Terminals: Radial Leaded
- Lead Spacing: 22.5mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 10%
- Capacitor Mounting: Through Hole
- Climatic Category: 55/100/56
- External Depth: 10mm
- External Length / Height: 22.5mm
- External Width: 26mm
- Height: 22.5mm
- Lead Diameter: 0.8mm
- Lead Length: 3.5mm
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +85°C
- Tolerance +: 10%
- Tolerance -: 10%
- Voltage Rating V DC: 100V
- Voltage Rating VAC: 63V
