Description

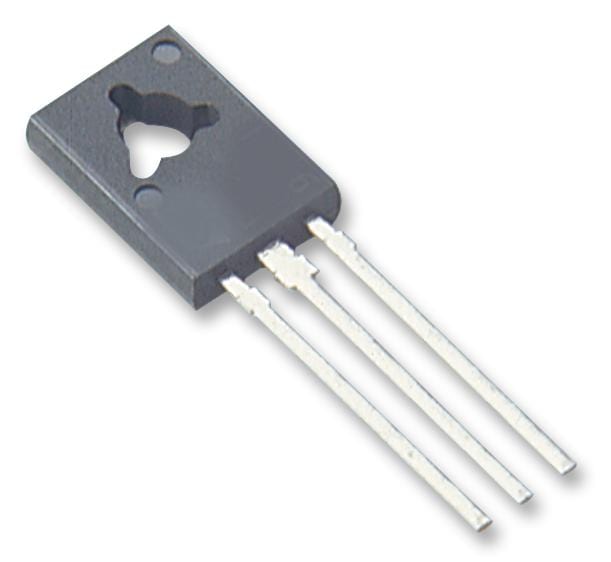

STMICROELECTRONICS - BD678 - Bipolar (BJT) Single Transistor, Darlington, PNP, 60 V, 4 A, 40 W, SOT-32, Through Hole
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: 60V
- Transition Frequency ft: -
- Power Dissipation Pd: 40W
- DC Collector Current: 4A
- DC Current Gain hFE: 750hFE
- Transistor Case Style: SOT-32
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Av Current Ic: 4A
- Collector Emitter Saturation Voltage Vce(on): -2.5V
- Continuous Collector Current Ic Max: 4A
- Current Ic Continuous a Max: 4A
- Current Ic hFE: 1.5A
- Device Marking: BD678
- Full Power Rating Temperature: 25°C
- Hfe Min: 750
- No. of Transistors: 1
- Power Dissipation Ptot Max: 40W
- Transistor Type: Darlington
- Voltage Vcbo: 60V
