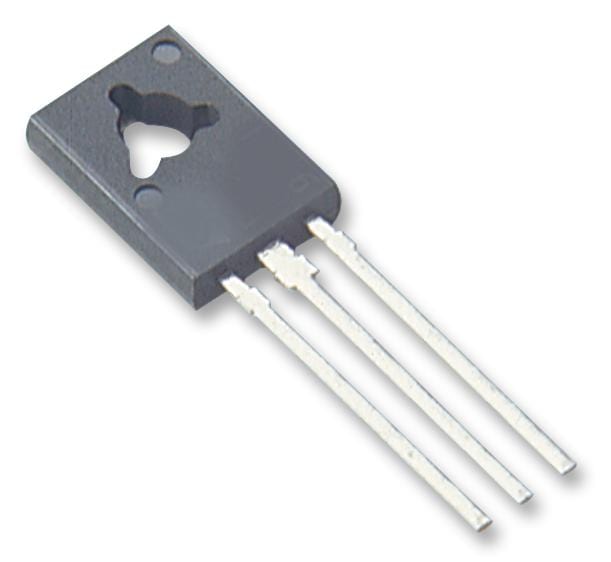

BD437G Transistor, NPN, TO-126 ONSEMI

ONSEMISKU: BD437G Order code: 9557610

Price:
Sale price€2,68

Tax included Shipping calculated at checkout

Stock:
In stock (8076 units), ready to be shipped

Documents et téléchargements

Description

ONSEMI - BD437G - Bipolar (BJT) Single Transistor, General Purpose, NPN, 45 V, 4 A, 36 W, TO-225AA, Through Hole

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 45V
  • Transition Frequency ft: 3MHz
  • Power Dissipation Pd: 36W
  • DC Collector Current: 4A
  • DC Current Gain hFE: 85hFE
  • Transistor Case Style: TO-225AA
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (27-Jun-2018)
  • Collector Emitter Saturation Voltage Vce(on): 500mV
  • Continuous Collector Current Ic Max: 4A
  • Current Ic Continuous a Max: 4A
  • Current Ic hFE: 2A
  • Full Power Rating Temperature: 25°C
  • Gain Bandwidth ft Min: 3MHz
  • Gain Bandwidth ft Typ: 3MHz
  • Hfe Min: 40
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Power Dissipation Ptot Max: 36W
  • Voltage Vcbo: 45V
