Description

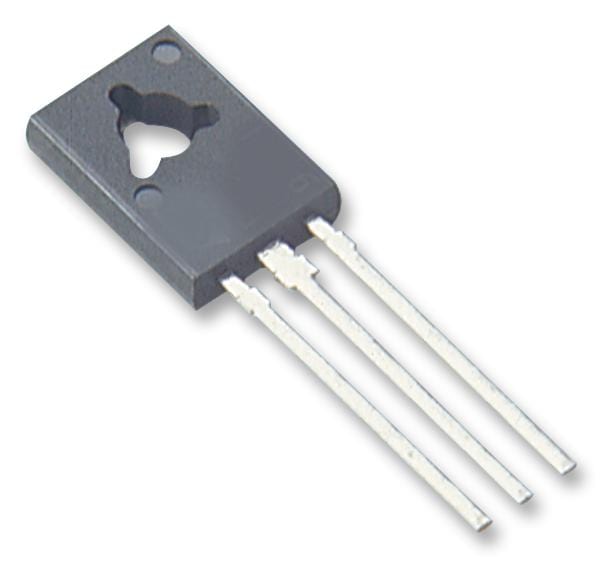

STMICROELECTRONICS - BD437 - Bipolar (BJT) Single Transistor, NPN, 45 V, 4 A, 36 W, TO-126, Through Hole
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 45V
- Transition Frequency ft: 3MHz
- Power Dissipation Pd: 36W
- DC Collector Current: 4A
- DC Current Gain hFE: 140hFE
- Transistor Case Style: TO-126
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Collector Emitter Saturation Voltage Vce(on): 600mV
- Continuous Collector Current Ic Max: 4A
- Current Ic Continuous a Max: 4A
- Current Ic hFE: 2A
- Device Marking: BD437
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Min: 3MHz
- Gain Bandwidth ft Typ: 3MHz
- Hfe Min: 40
- No. of Transistors: 1
- Power Dissipation Ptot Max: 36W
- Voltage Vcbo: 45V
