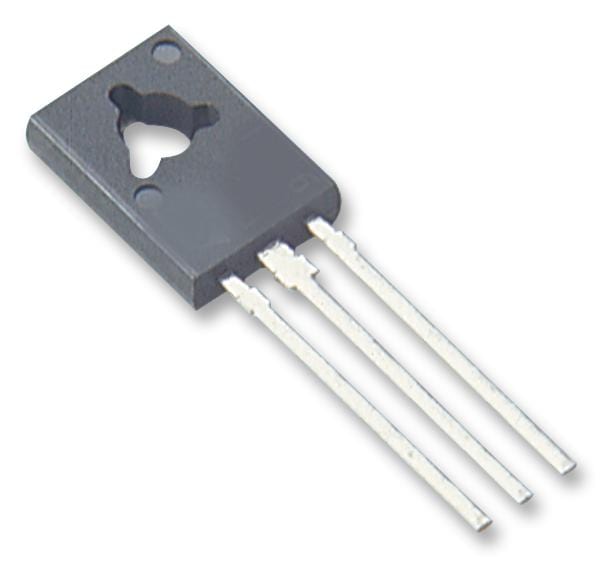

MULTICOMP PRO - BD140 - Bipolar (BJT) Single Transistor, General Purpose, PNP, 80 V, 1.5 A, 12.5 W, TO-126, Through Hole
- Transistor Polarity: PNP
 - Collector Emitter Voltage V(br)ceo: 80V
 - Transition Frequency ft: -
 - Power Dissipation Pd: 12.5W
 - DC Collector Current: 1.5A
 - DC Current Gain hFE: 40hFE
 - Transistor Case Style: TO-126
 - No. of Pins: 3Pins
 - Operating Temperature Max: 150°C
 - Product Range: -
 - Automotive Qualification Standard: -
 - MSL: -
 - SVHC: No SVHC (15-Jan-2019)
 - Av Current Ic: 1.5A
 - Collector Emitter Saturation Voltage Vce(on): 500mV
 - Continuous Collector Current Ic Max: 1.5A
 - Current Ic Continuous a Max: 1.5A
 - Current Ic hFE: 150mA
 - Full Power Rating Temperature: 25°C
 - Hfe Min: 40
 - No. of Transistors: 1
 - Termination Type: Through Hole
 - Voltage Vcbo: 100V
